Audio Module: MP-6/D (microphone w/ balanced output)
Code: M1916
Price w/o taxPriceDisc.Validity
6.12 EUR6.12 EUR0 %
MP-6/D - professional microphone with balanced and unbalanced outputs.
Audio Module: MP-6/D (microphone w/ balanced output)

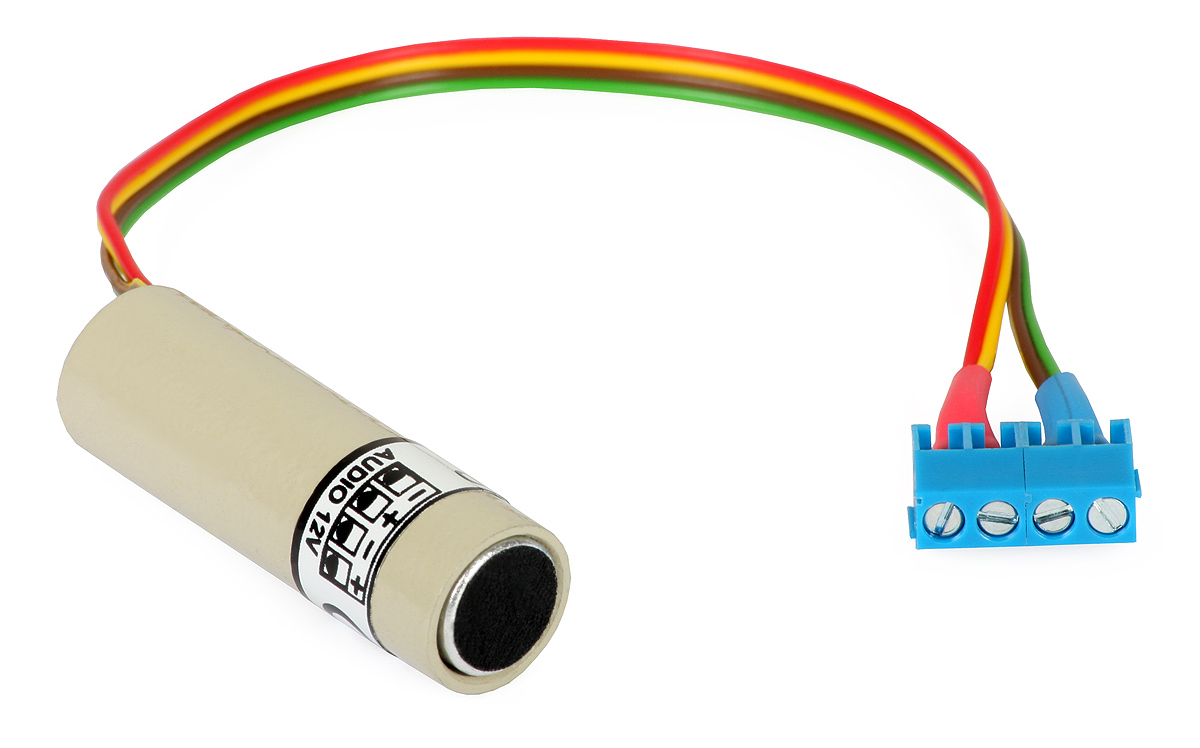

View of the device
Distinguishing features:
  • possibility of signal transmission through twisted pair or coaxial cable,
  • low power consumption allows to use long power cable.
The MP-6/D microphone is designed for creating sound channel in various applications. The device has two kinds of outputs:
  • balanced (differential) output allowing to transmit sound over longer distances via twisted pair cable,
  • unbalanced (asymmetrical) output for use with coaxial cable.
The asymmetric signal can be obtained by using the negative side of power supply and one of the symmetrical outputs.

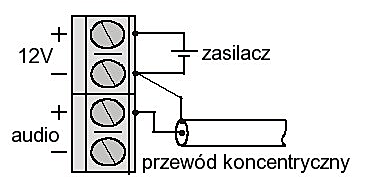

Connection with an unbalanced signal line (coaxial cable)

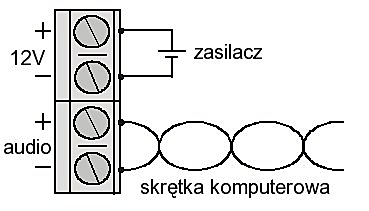

Connection with a balanced signal line (twisted pair)
Using a solution with a balanced signal line, the opposite side of the transmission line has to be equipped with a device matching the impedance of the microphone. The suitable device: M1662 or M1663 transformer.

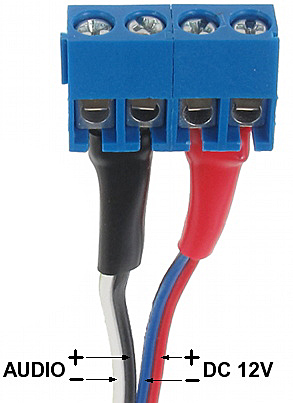

The wire description
Specifications:
Name:MP-6/D
Code:M1916
Bandwidth:20 Hz - 20 kHz
Power supply:12 VDC
Current consumption:10 mA
Weight:9 g
Dimensions:diam. 12 x 35 mm
Transmission range (signal & power):up to 1200 m (twisted pair)
Metal casing:
yes
