Building Amplifier: Terra HA-123
Code: R82301
Price
Disc.
Quantity
31.09 EUR
0 %

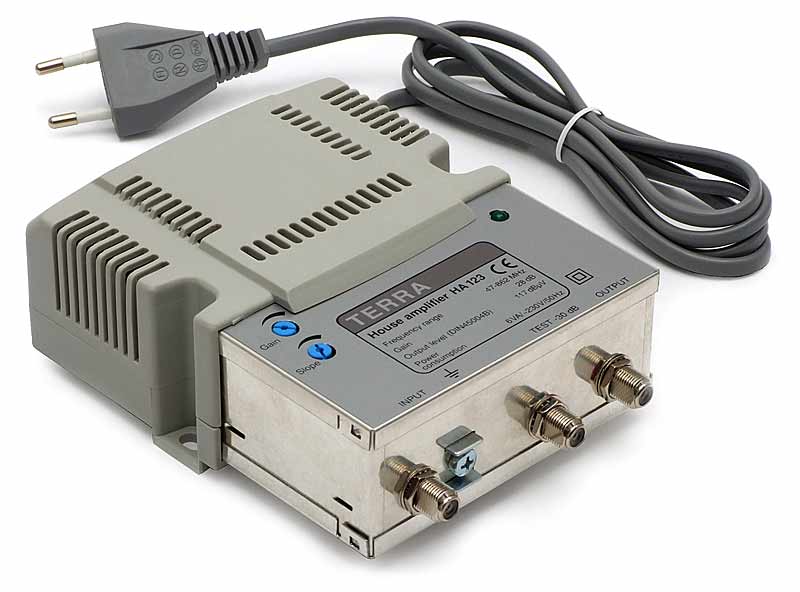

View of the amplifier
Main features
- push-pull output stage
- built-in attenuator and cable attenuation equalizer
- F-type connectors

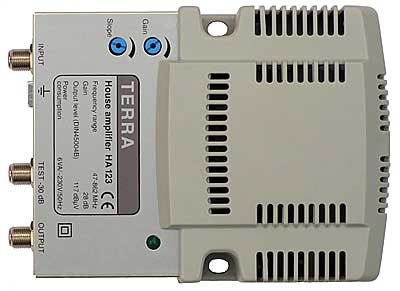

Top view
Specifications
Name | HA 123 | |
| Code | R82301 | |
| Gain [dB] | FM/TV (47-862 MHz) | 28 |
| return channel | - | |
| Pass-band ripple | + / - 0.5 dB | |
| Number of inputs | 1 | |
| Number of outputs | 1 | |
| Gain adjustment [dB] | 0 to -20 | |
| Cable loss correction [dB] | 0 to -18 | |
| Maximum output level IMD3=60 dB DIN45004B [dBuV] | 117 | |
| Maximum output level IMD2=60 dB EN50083-3 [dBuV] | 112 | |
| Return loss [dB] | > 14 dB | |
| Noise figure - typical [dB] | < 6 | |
| Power | 6 VA / 230 V / 50 Hz | |
| Operating temperature [ºC] | -20 to +50 | |
| Dimensions [mm] | 107x145x53 | |
| Gross weight [kg] | 0.59 | |
* when f>=47 MHz, the suppression lowers 1.5 dB/octave
Characteristics with cable attenuation equalization (maximum gain): BLUE - gain, RED - impedance matching
Characteristics without cable attenuation equalization (maximum gain): BLUE - gain, RED - impedance matching
Characteristics with cable attenuation equalization (minimum gain): BLUE - gain, RED - impedance matching
Characteristics without cable attenuation equalization (minimum gain): BLUE - gain, RED - impedance matching
