(for TRISET-113)
- wide operating band - up to 2.4 GHz,
- waterproof termination of the cable,
- resistance to corrosion - made of non-ferrous metals and highest-quality dielectric,
- very low loss in the whole operating band,
- perfect matching to the transmission line within the whole operating band,
- simple and quick assembly: longitudinal compression,
- properly compressed connection is highly resistant to break, due to dual compression rings,
- full integration with the cable
- perfect contact due to "four-leaved clover" system
- matched to the TRISET-113 cables,
- the cable to be stripped with E80074 tool (1/4" x 1/4")
- to be compressed with PCT-AIO-CT E80075 or TR-255 E80077 compressing tools,
- the connector can be screw down with 7/16" wrench,
- many patent-pending solutions,
- quick and easy assembly, as well as stability of operation of the equipment are really worth the price.

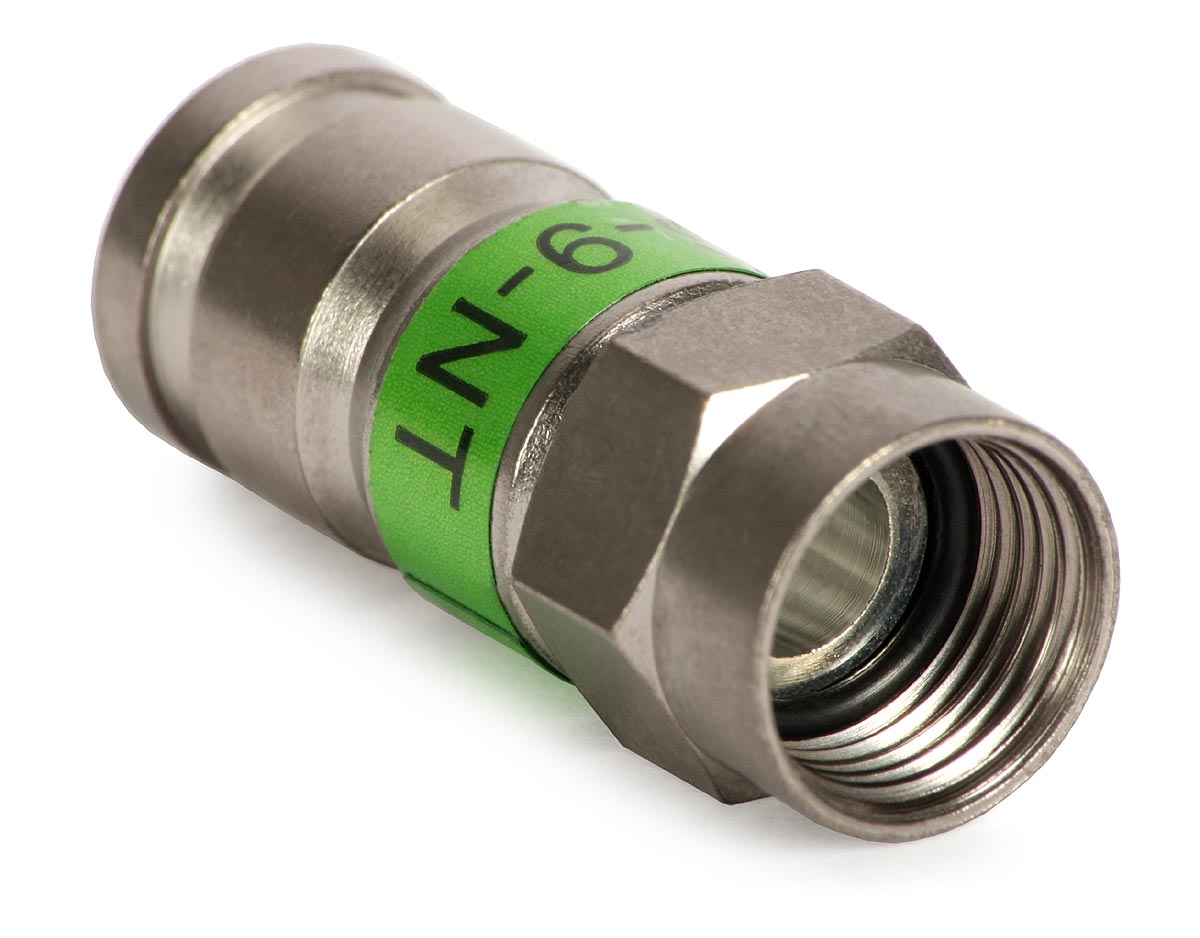

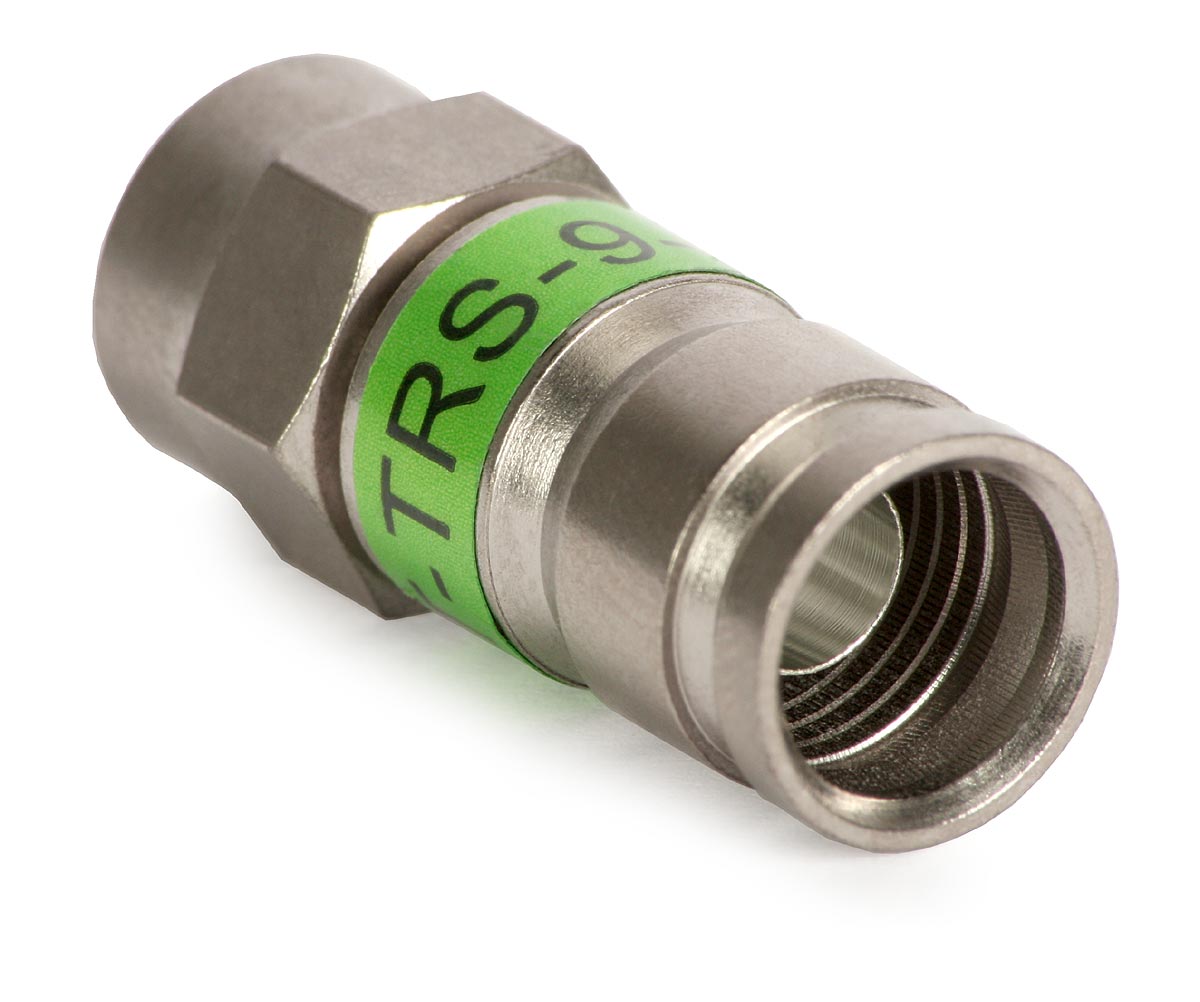

| Name | Compression F Connector PCT TRS-9 NT for TRISET-113 |
| Code | E80340 |
| Material | |
| Body material | C 360 brass |
| Body finish | Nickel tin |
| O-ring material | Ethylene-propylene rubber |
| Physical dimensions | |
| Body outer diameter | 11.1mm |
| Body inner diameter | 8.5mm |
| Mandrel inner diameter | 5mm |
| Electrical properties | |
| Return loss | -28dB up to 1GHz |
| Insertion loss | -0.2dB up to 1GHz |
| RFI shielding | -80dB |
| Parameter | Specification | Requirement |
| Cable retention | SCTE IPS-TP-401 | pull force > 178 N |
| Chemical resistance | BLCR GR-1503-CORE 4.7 | no cracking or swelling |
| Corrosion resistance | BLCR GR-1503-CORE 3.2.1 | 1000 hours in salt spray |
| Dielectric strength | BLCR GR-1503-CORE 3.5.2 | 1 kV AC for 1 minute |
| Equipment interface | BLCR GR-1503-CORE 3.2.4 | 10 matings with torque 4.47 Nm without damage |
| Insertion loss | BLCR GR-1503-CORE 3.5.3 | < 0.05 dB to 350 MHz, |
| Installation force | SCTE IPS-TP-004 | < 89 N |
| Loosening torque | BLCR GR-1503-CORE 4.2 | ≥ 3.35 Nm |
| Moisture migration | SCTE IPS-TP-013 | no dye penetration after 5 days of temperature cycling |
| Ozone degradation | BLCR GR-1503-CORE 4.1 | 70 hours exposure |
| Return loss | SCTE IPS-TP-110 | > 30 dB to 1 GHz |
| Salt fog | BLCR - ASTM B 117 | return loss > 30 dB to 1 GHz |
| Shielding effectiveness | SCTE IPS-TP-403 | > 100 dB to 300 MHz, |
| Temperature cycling with humidity | BLCR GR-1503 4.1 | pull force > 178 N |
| UV degradation | BLCR GR-1503-CORE 4.8 | no change after 7 days |
| Vibration | BLCR GR-1503-CORE 4.6 | loosening torque after vibration > 3.57 Nm |
