Multiswitches
Terra
Multiswitch Terra MSV-912 (9-in/12-out, active terrestrial path, w/o power supply)
Code: R70862
Price
Disc.
Quantity
176.13 EUR
0 %
Multiswitch from well known Terra company that specializes in manufacturing professional RF equipment. The device has been designed for distributing satellite signals to a number of users (SMATV systems). High manufacturing standards, stability, reliability - make Terra multiswitches leading market products. They can cooperate with all satellite platforms.

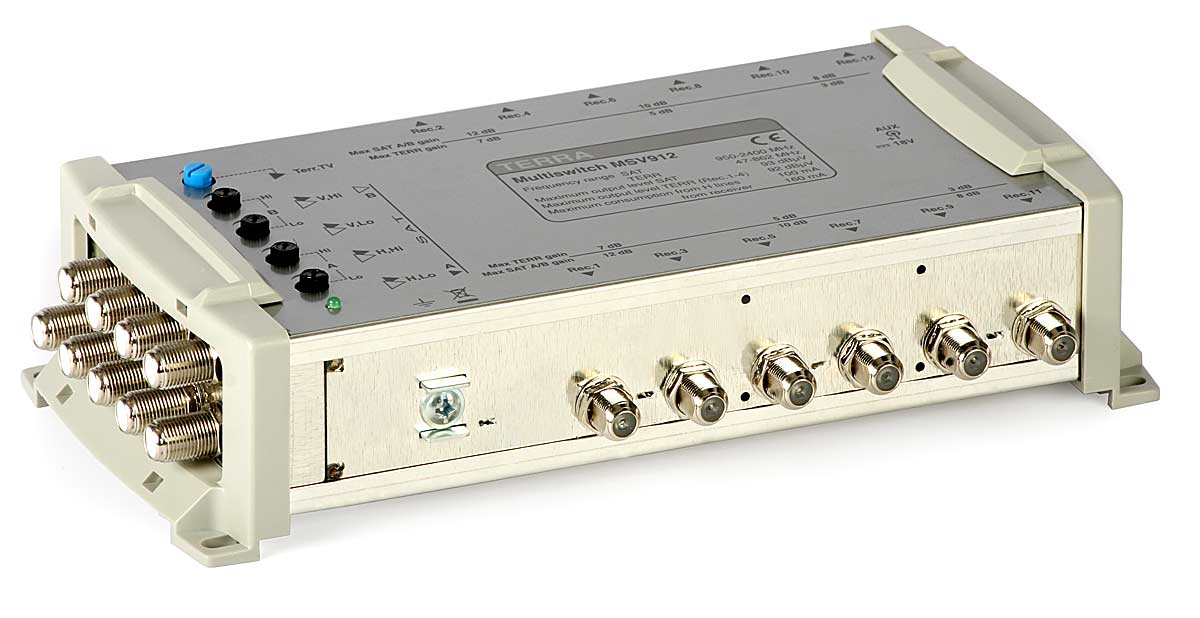

View of the multiswitch

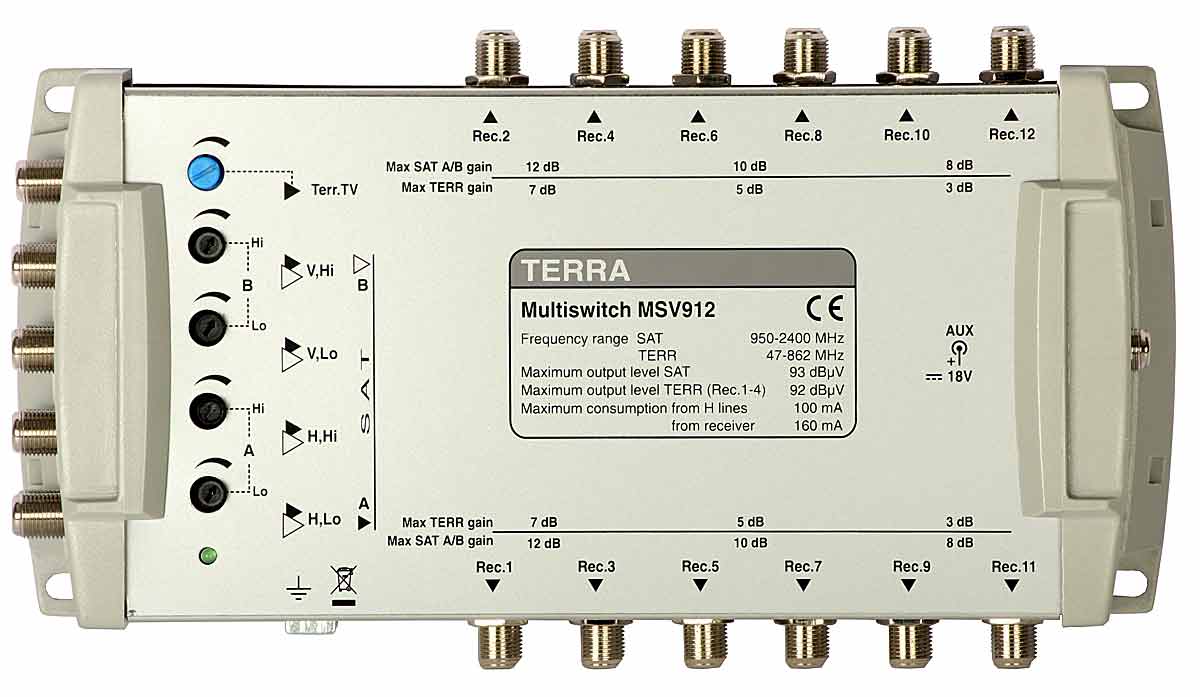

Top view
Specifications
Name |
| MSV-908 | MSV-912 | MSV-916 | ||
| Code |
| R70858 | R70862 | R70866 | ||
| Number of outputs |
| 8 | 12 | 16 | ||
| Frequency range | SAT TV | MHz | 950-2400 | |||
| Terr. TV | MHz | 47-862 | ||||
| Gain with typical precorrection | SAT | Outputs 1-4 | dB | 7-12 | ||
| Outputs 5-8 | dB | 6-10 | ||||
| Outputs 9-12 | dB | - | 5-8 | |||
| Outputs 13-16 | dB | - | 4-6 | |||
| TV | Outputs 1-4 | dB | 3-7 | |||
| Outputs 5-8 | dB | 2-5 | ||||
| Outputs 9-12 | dB | - | 1-3 | |||
| Outputs 13-16 | dB | - | 0-1 | |||
| Synchronous gain adjustment of IF path | dB | 10 | ||||
| Gain adjustment of terrestrial path | dB | 17 | ||||
| Max. output level - SAT IF (IMD3=35dB) | dB | 93 | ||||
| Max. output level - terrestrial TV (DIN45004B) | Outputs 1-4 | dB | 92 | 92 | 92 | |
| Outputs 5-8 | dB | 90 | 90 | 90 | ||
| Outputs 9-12 | dB | - | 88 | 88 | ||
| Outputs 13-16 | dB | - | - | 86 | ||
| Isolation between SAT inputs | dB | >25 | ||||
| Isolation between outputs | dB | >25 | ||||
| Receiver's current | mA | <160 | ||||
| Powering through H lines or external power supply | V/mA max | +12...+18/100 | ||||
| Control signals |
| 14/18V, 0/22kHz, Tone Burst or DiSEqC 2.0 | ||||
| Operating temperature | oC | -20...+50 | ||||
| Dimensions / weight | mm/kg | 170x128x53/0.58 | 210x128x53/0.68 | 250x128x53/0.78 | ||
Multiswitch designed for cooperation with two Quatro LNBs and terrestrial TV antenna, allowing to build medium and large SMATV systems. It is intended for indoor use only.
An important advantage of MSR-9XX multiswitches is diversification of signal levels at different outputs. It allows to compensate the differences in attenuation of various lengths of cables that have to be used in the installation - we can get similar levels in all outlets. The most distant outlets are connected to the outputs with the highest levels and so on.
Additionally, the multiswitches compensate cable characteristics (provide higher levels for higher frequencies).
Additionally, the multiswitches compensate cable characteristics (provide higher levels for higher frequencies).
The multiswitch is powered with +12VDC to +18VDC. It is possible via "H" lines, from SA-901 (R70901) amplifier. There may also be used local supplier (R71465 18V/800mA).
NOTICE !!!. In the case of using subnetworks and more than one power supply (local supplier or SA-901 amplifier), it is indispensable to separate the subnetworks switching off DC pass in SS-XXX splitter/tap ("OFF" position). Otherwise the power supplies will be damaged.
The following voltages occur at inputs of the multiswitch:
- 18 V DC at H,lo and H,Hi inputs
- 14 V DC at V,lo and V,Hi inputs
