Multiswitches
Terra
TV/SAT Splitter: Terra SSQ-908 (9-in, 36-out)
Code: R70529
Price
Disc.
Quantity
129.25 EUR
0 %

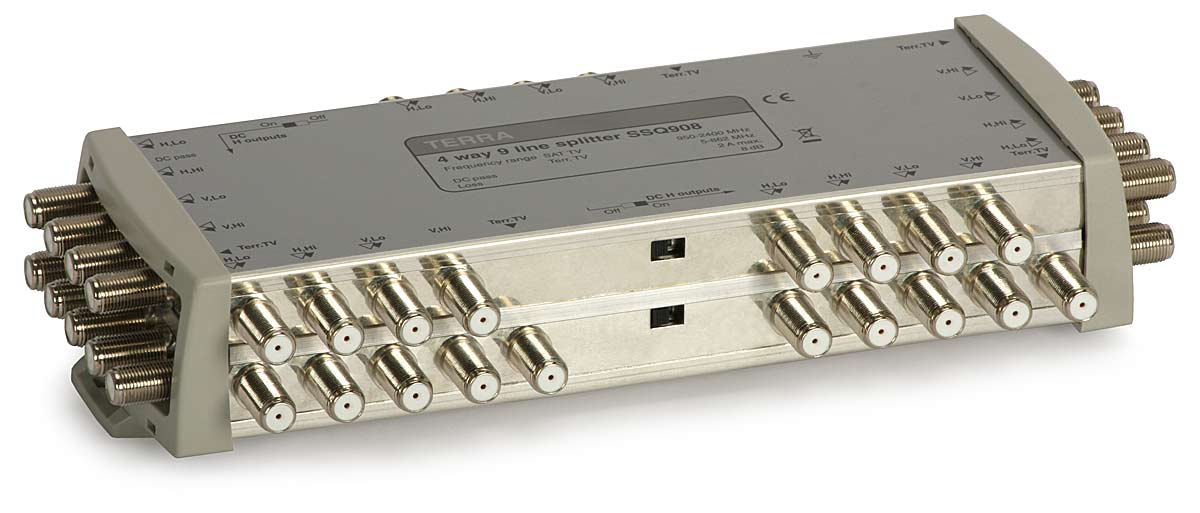

View of the splitter

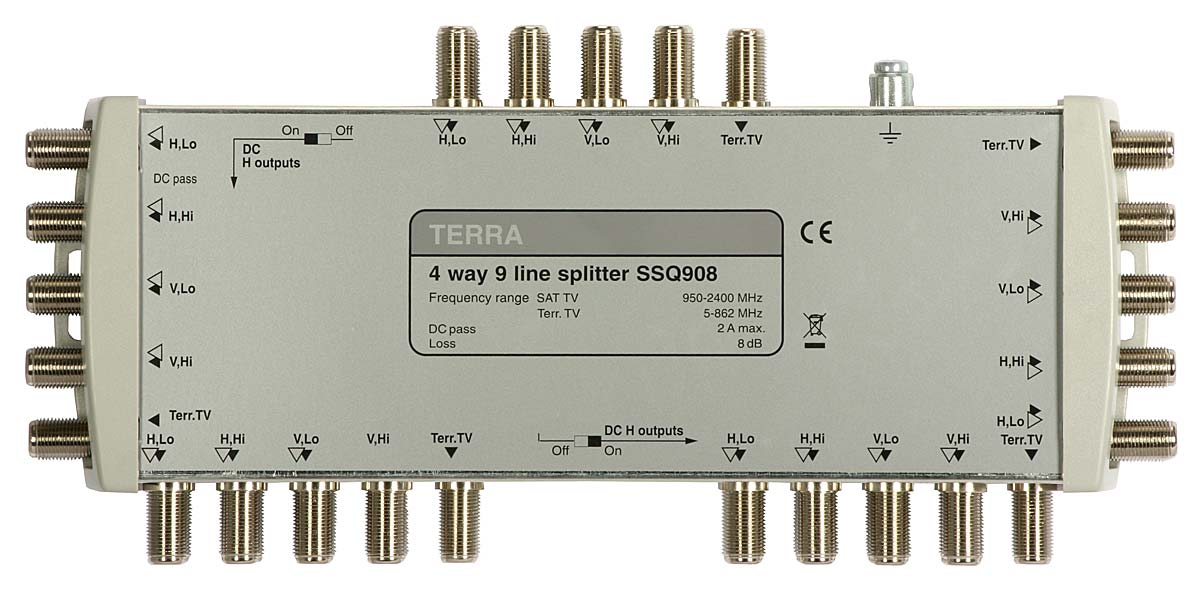

Top view
The splitter is used in multiswitch installations to extend 9-cable systems (2x4 SAT + Terr. TV) into four subnetworks. The splitter is equipped with DC-pass switch that in "ON" position runs current through "H" lines to both branches. In "OFF" position it is possible only within one branch.
Main features:
- 9-cable system (2 x 4 SAT + terrestrial TV)
- used in multiswitch installations with subnetwork partition - divides the system into four subnetworks
- replaces 9 individual TV/SAT splitters
- equipped with optionally switched-off DC pass
- also available tap versions SS-910 R70524, SS-915 R70525, SS-920 R70526, and splitter version - SSQ-908 R70529
Specifications
Name | SSQ-908 | ||
| Code | R70529 | ||
| Number of inputs | 9 | ||
| Number of outputs | 18 | ||
| Frequency range | SAT TV | 0.95-2.3 GHz | |
| Terr. TV | 5-862 MHz | ||
| Splitter attenuation | SAT TV | 8 dB | |
| Terr. TV | 8 dB | ||
| Isolation between outputs | >30 dB | ||
| DC pass current | 2 A max | ||
| Operation temperature | -20 to + 50 oC | ||
| Dimensions | 254x120x51 mm | ||
| Weight | 0.8 kg | ||
Price
Disc.
Quantity
129.25 EUR
0 %
