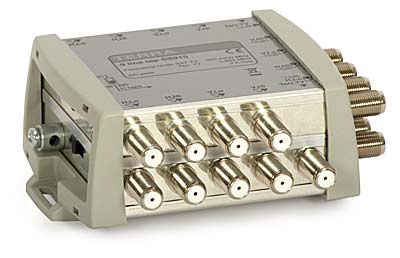

TV/SAT Tap: Terra SS-915 (9-in, 18-out, 15dB)
Code: R70525
Price
Disc.
Quantity
74.25 EUR
0 %

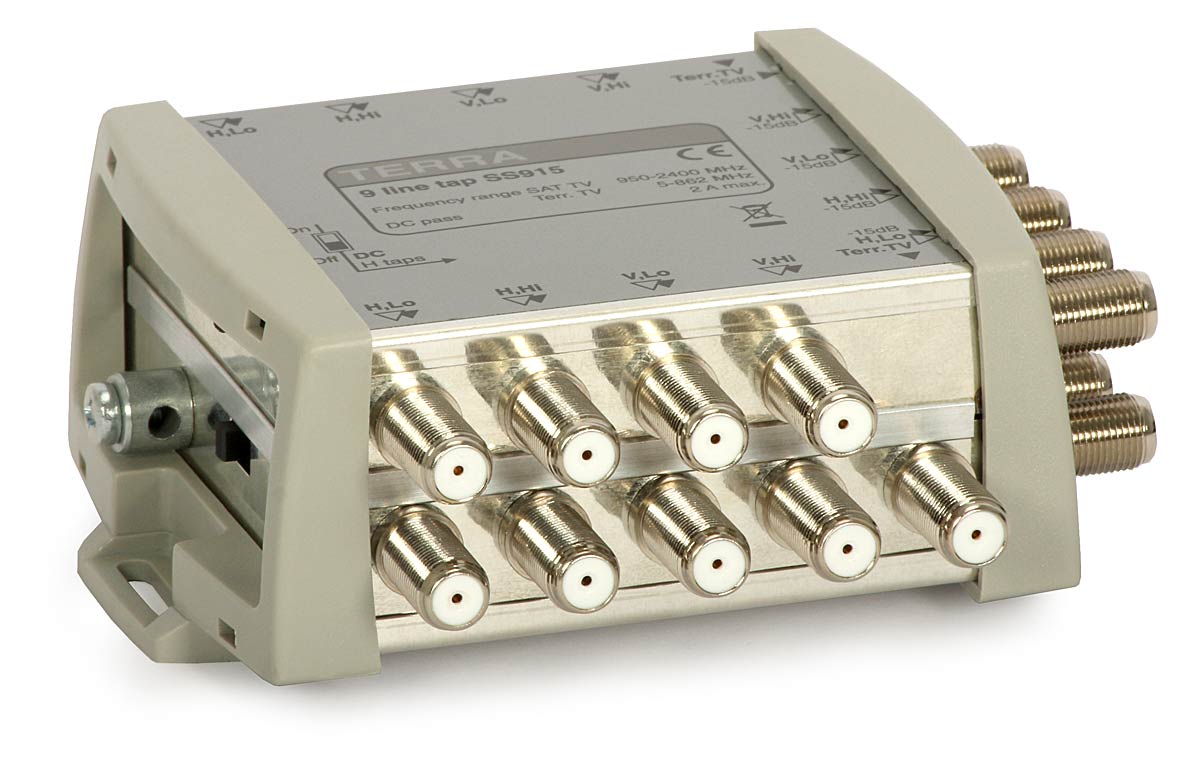

View of the tap

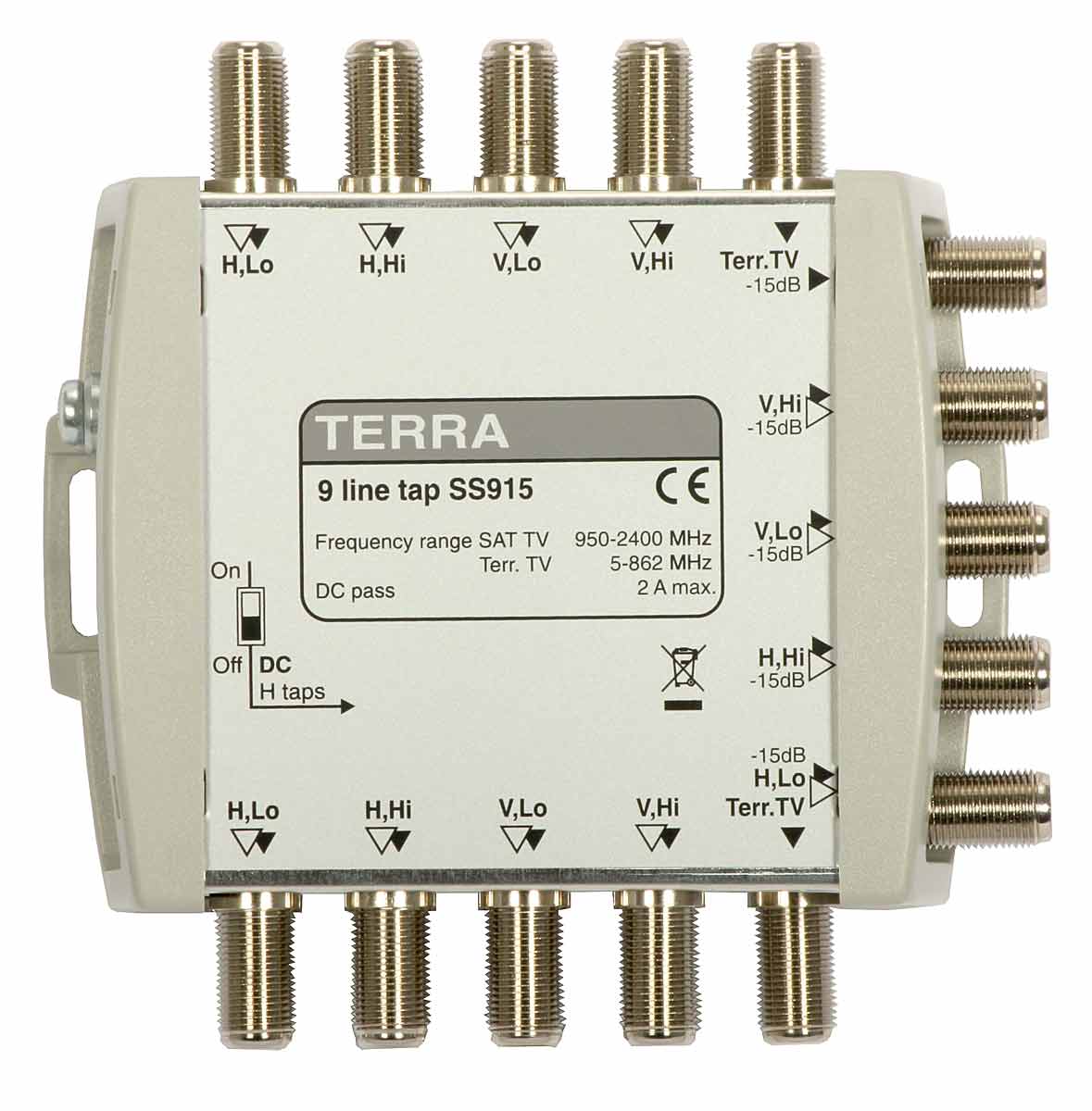

Top view
The tap is used in multiswitch installations to extend 9-cable systems (2x4 SAT + Terr. TV) into two subnetworks. The tap is equipped with DC pass switch that in "ON" position runs current through "H" lines to both branches. In "OFF" position it is possible only within one branch.
The tap is recommended for large, unsymmetrical multiswitch systems. Application of suitable taps allows to equalize levels in sub-networks.
The tap is recommended for large, unsymmetrical multiswitch systems. Application of suitable taps allows to equalize levels in sub-networks.
Main features:
- 9-cable system (2 x 4 SAT + terrestrial TV)
- used in multiswitch installations with subnetwork partition - divides the system into two subnetworks
- replaces 9 individual TV/SAT taps
- equipped with optionally switched-off DC pass
- also available in other tap version - SS-910 R70524, SS-920 R70526, and splitter versions - SS-904 R70523, SSQ-908 R70529
Specifications
| Name | SS-915 | ||
| Code | R70525 | ||
| Number of inputs | 9 | ||
| Number of outputs | 18 | ||
| Frequency range | SAT TV | 0.95-2.3 GHz | |
| Terr. TV | 5-862 MHz | ||
| Pass through attenuation | SAT TV | 1.2 dB | |
| Terr. TV | 1.2 dB | ||
| Tap attenuation | SAT TV | 13-17 dB | |
| Terr. TV | 15 dB | ||
| Isolation between outputs | >30 dB | ||
| DC pass current | 2 A max | ||
| Operation temperature | -20 to + 50 oC | ||
| Dimensions | 120x120x51 mm | ||
| Weight | 0.4 kg | ||
