WLAN WiFi Directional Antenna: GRID24024 (2.4GHz, 24dB)
Code: A72703
Withdrawn from the offer
WLAN WiFi Directional Antenna: GRID24024 (2.4GHz, 24dB)
View of the antenna

Pacific Wireless GD24 has been designed for client stations and Point-to-Point applications. Thanks to ribbed reflector the antenna is not susceptible to gusts of wind. The antenna ensures high gain that allows operation at longer distances from access points. It is connected with high directivity - the half-power angle is 8 degrees.
Notice!
The reflector of the antenna may come in one of three versions: divided into two segments to be screwed down, and two others, being single components. The differences do not change parameters of the antenna.
Specifications

Name

GD24

Code

A72703

Frequency range

2.4-2.5 GHz

Gain

24dB

Half-power angle

8 deg

Attenuation of orthogonal polarization

26dB

Front/back ratio

>24dB

Weight

3.7kg

Dimensions

724 x 914 mm

Focal point distance

16"

Connector

N plug

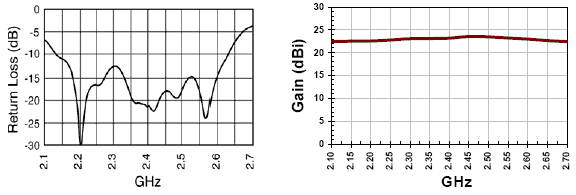

Characteristics of the antenna
