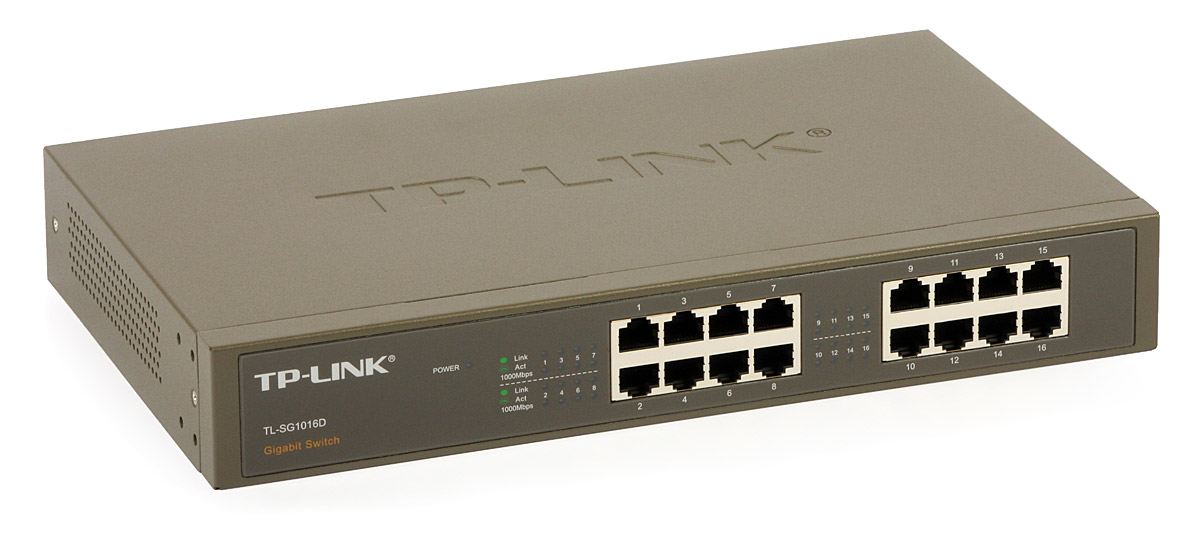

View of the device

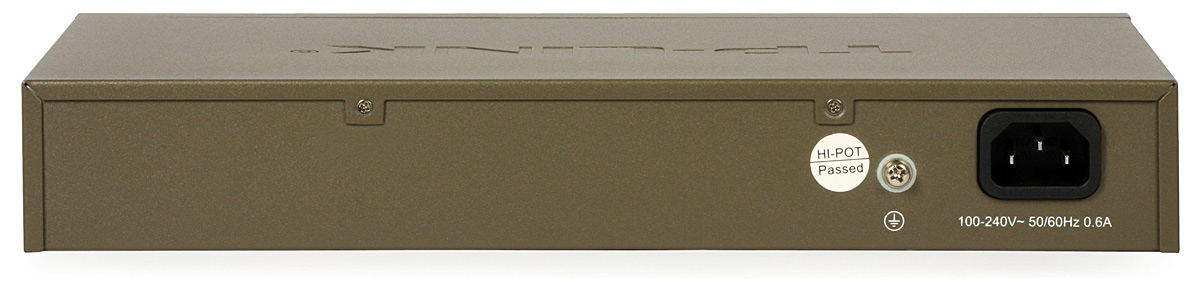

Rear view
View of the packaging
Distinguishing features
- All 16 ports (RJ45 10/100/1000 Mbps) in Auto MDI/MDIX technology,
- LEDs indicating operation status,
- No fan - quiet work,
- Built-in power supply.
16-port Gigabit Switch TP-Link TL-SG1016D finds widespread use in small and medium computer networks. Due to Auto MDI/MDIX function it does not bother the installer about the problem of straightforward or crossover cables.
Specifications
| Name | Gigabit Switch TL-SG1016D 16 ports |
| Code | N29940 |
| Supported standards | 902.3 802.3u 802.3ab 802.3x CSMA/CD TCP/IP |
| Internal data throughput [Gb/s] | 32 |
| MAC table | 8k |
| Port capacity [pps/port] | 10BASE-T: 14880 100BASE-TX: 148800 1000BASE-T: 1488000 |
| Transmission mechanism | Store-and-Forward |
| Ports | 16x 10/100/1000 (Auto MDI/MDIX) |
| Certificates | CE, FCC |
| Dimensions [mm] | 294x180x44 |
| Operating temperature [º] | 0... +40 |
Specifications
| Name | Switch: TP-Link TL-SG1016D 16 × GE | ||
| Model | TL-SG1016D | ||
| Applications | Switch for home, Switch for office | ||
| Manufacturer | TP-Link | ||
| Interfaces | |||
| Ethernet ports | number of ports | 16 | |
| Ethernet ports | port types | Gigabit Ethernet | |
| 10/100/1000 Mbps | 16 | ||
| Console port | No | ||
| Performance | |||
| Bandwidth | Gbps | 32 | |
| Packet forwarding rate | Mbps | 23.8 | |
| MAC address table | 8K | ||
| Jumbo frame | kB | 10 | |
| PoE properties | |||
| PoE | No | ||
| Device properties | |||
| Max. power consumption | W | 9.26 | |
| Power supply | AC | V | 100...240 |
| Number of fans | None | ||
| Dimensions | mm | 294 × 180 × 44 | |
| Mounting | Desktop, RACK | ||
| Redundant supply | No | ||
| Certificates | CE/FCC | ||
| Package content | Manual, Power cable, Switch, RACK mounting brackets | ||
| Operating environment | |||
| Temperature | operation | ℃ | 0...+40 |
| Humidity | air | % | 10...90 |
| Humidity | storage | % | 5...90 |
