UHF TV DVB-T/T2 Antenna: DIPOL 44/21-60 Tri Digit
Code: A2670

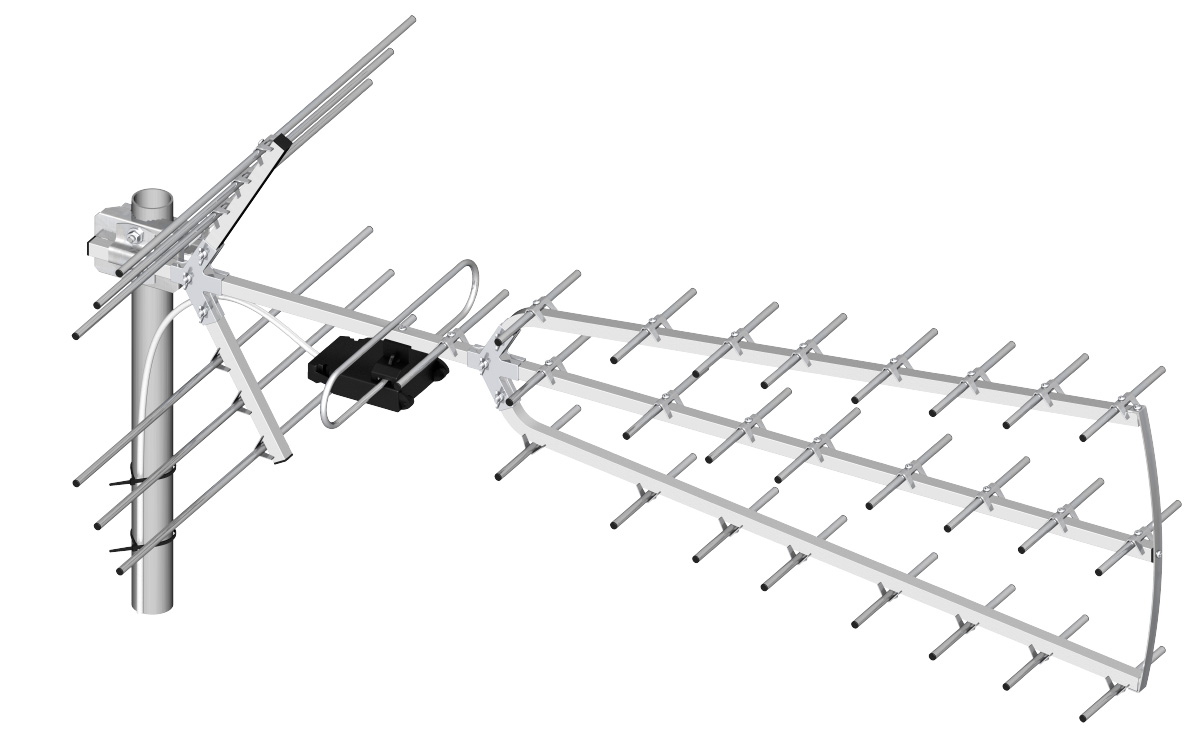

View of the antenna
C0005 balun (impedance transformer with F-type connector) mounted in the E9315 antenna box

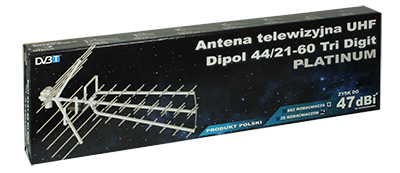

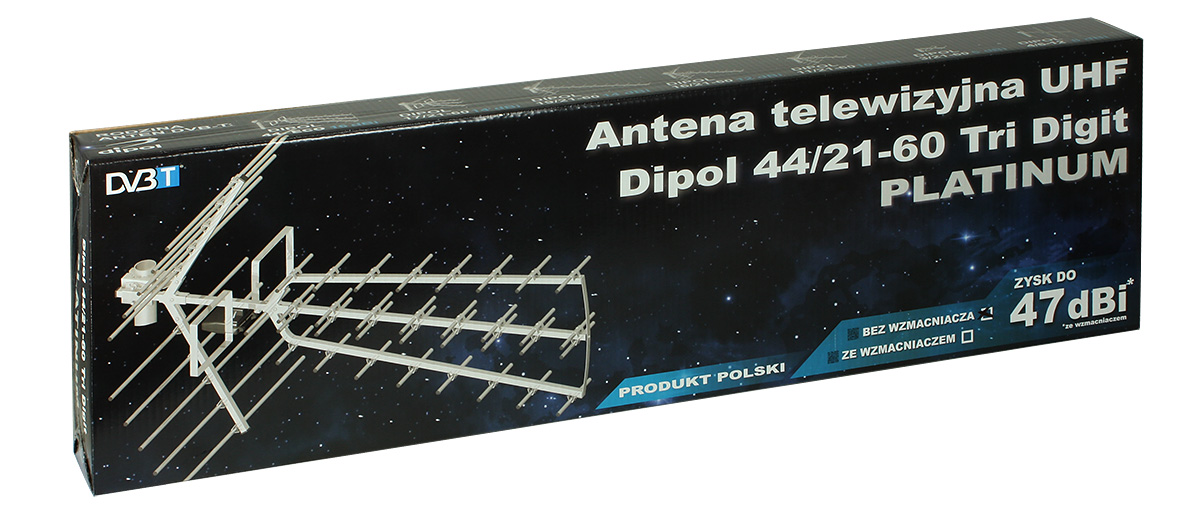

View of the packaging
Antenna suitable for DVB-T/T2 signal reception
44-element antenna for the whole UHF band (ch. 21-60), designed for receiving digital TV broadcasts (DVB-T) and analog TV channels. Due to special design of the array, the antenna has a very high gain (despite its compact size - length: 104 cm). It is equipped with impedance transformer. The main elements are made of aluminum, structural parts are made of steel and galvanized.
The Tri Digit A2670 antenna is nearly ready to use (assembled in 90%), in individual packaging (cardboard box) containing instruction leaflet. Bulk packaging: five-packs (five boxes wrapped in foil).
The Tri Digit A2670 antenna is nearly ready to use (assembled in 90%), in individual packaging (cardboard box) containing instruction leaflet. Bulk packaging: five-packs (five boxes wrapped in foil).
Specifications
| Name | UHF TV ant. |
| Code | A2670 |
| Gain [dBi] (see the chart below) | 14-16.8 |
| Channels | 21-60 |
| Front/back ratio [dB] | 25 |
| Polarization | H |
| Number of elements | 44 |
| Impedance [ohm] | 75 |
| Packaging | cardboard box |
| Weight [kg] | 1.51 |
| Beam V/H [°] | 45/56 |
| Dimensions [mm] | 1050x50x55 |
Gain versus frequency
