€7.24
| Price | Disc. | Quantity | Validity |
|---|---|---|---|
| €7.24 | 0 % | from 1 piece |
Available

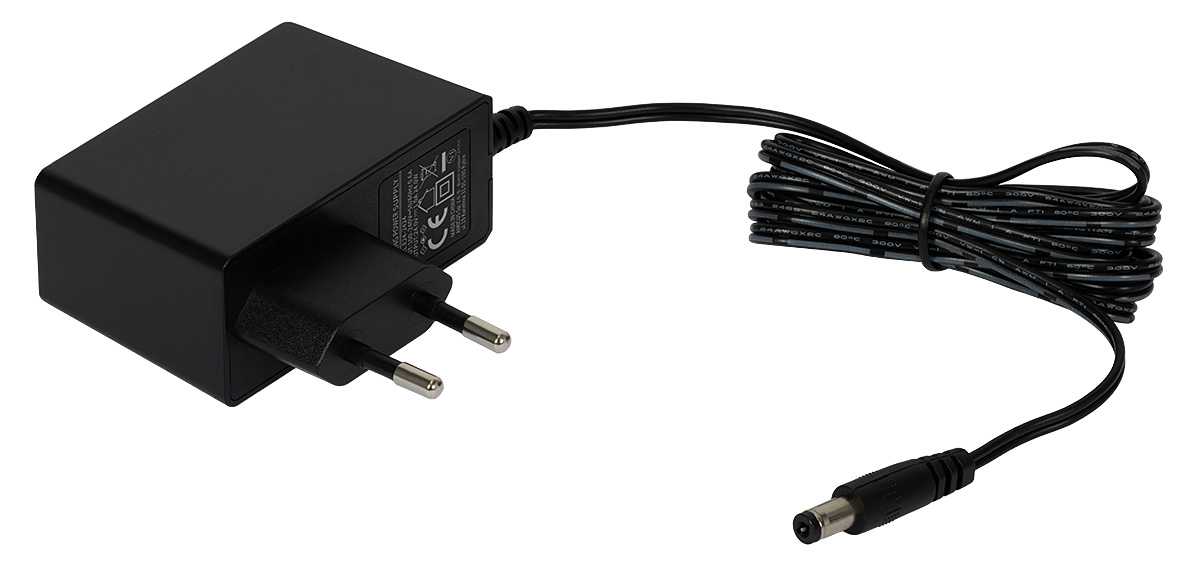

A compact, powerful 24V/1A plug-in power supply for universal applications, with full protection and a 5-year warranty.
• Compact, lightweight design
• Reliable and efficient
• Energy Star Compliance Level VI and ErP Ecodesign compliant.
• High power output
• No-load power consumption less than 100 mW
• Reliable and efficient
• Energy Star Compliance Level VI and ErP Ecodesign compliant.
• High power output
• No-load power consumption less than 100 mW
Details
The E24 series are small and efficient plug-in power supplies with 24 W of power and a universal purpose. Their design is based on high-quality electronic components that ensure continuous and long-lasting operation under all conditions. The power supplies are distinguished by their reliability, full set of protections and stability of operation. They provide high efficiency and excellent technical parameters. The devices are covered by a 5-year warranty.
Key features:
- compact, lightweight design
- reliable and efficient
- Energy Star Compliance Level VI and ErP Ecodesign compliant
- high power output
- no-load power consumption less than 100 mW
Block diagram of the power supply
Specifications
| Model | E24-2424-211 | ||
| Product type | Pluggable | ||
| power output | W | 24 | |
| Brand | ESPE | ||
| Input parameters | voltage | AC V | 100...240 |
| Frequency | Hz | 47...63 | |
| connector type | Wtyczka EU | ||
| Output parameters | number of outputs | 1 | |
| voltage | DCV | 24 | |
| output current | A | 1 | |
| connector type | DC 2.1/5.5 plug | ||
| protection | Overcurrent | Yes | |
| overvoltage | Yes | ||
| short-circuit | Yes | ||
| Operating temperature | °C | -5...40 | |
| Dimensions | mm | 70 x 30 x 64 | |
| Weight | kg | 0.1 | |
