€69.22
| Price | Disc. | Quantity | Validity |
|---|---|---|---|
| €69.22 | 0 % | from 1 piece |
Available

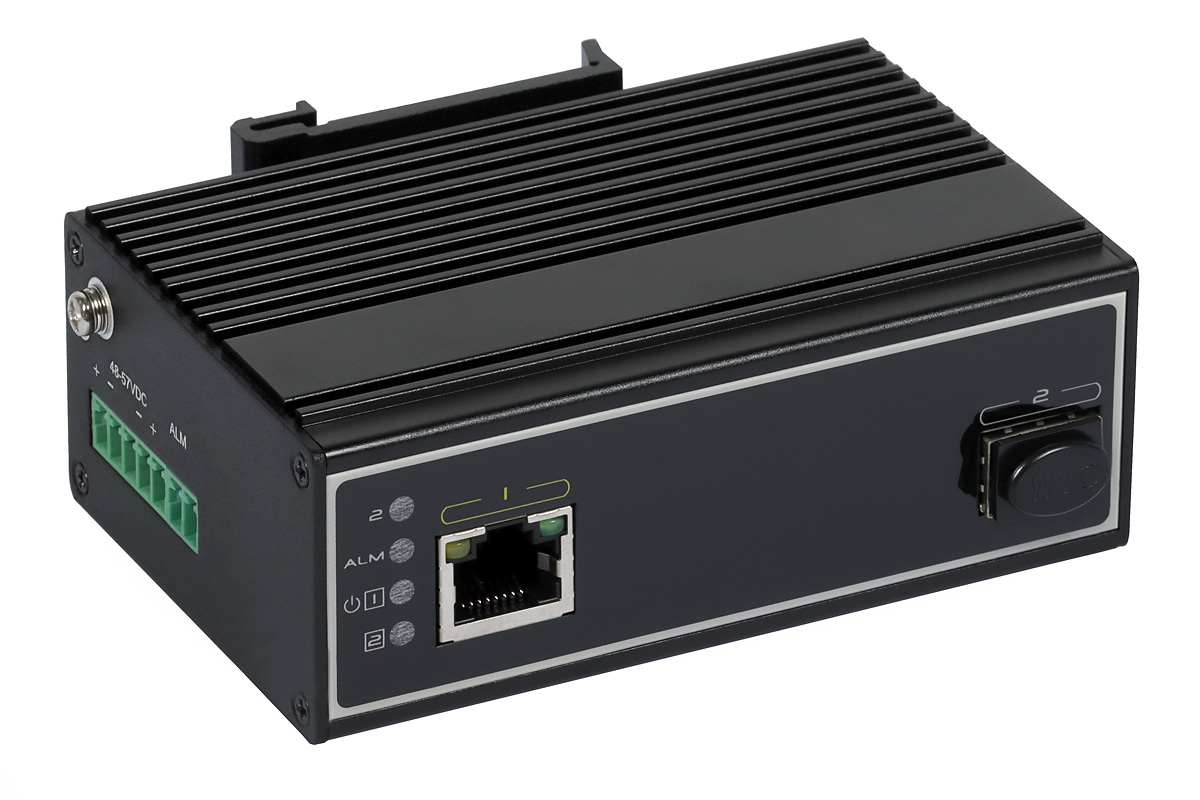

The ULTIPOWER PoE switch is an industrial device. Dedicated to systems operating in dusty atmospheres, high or low temperatures.
• Protection degree: IP40 ingress protection level
• Input supply voltage: 48-57 VDC
• Possibility of connecting two power supplies (the main and redundant)
• Power consumption: without PoE load: <5 W
• Ethernet ports: 1x GigabitEthernet 10/100/1000 Mbps
• PoE ports: 1
• Fiber optic transmission: 1x SFP 1000 Mbps
• Protection against electrostatic discharge: 6 kV
• Operating temperature range: -40...65℃
• Permissible ambient humidity: 5...95%
• DIN rail mounting option
• Input supply voltage: 48-57 VDC
• Possibility of connecting two power supplies (the main and redundant)
• Power consumption: without PoE load: <5 W
• Ethernet ports: 1x GigabitEthernet 10/100/1000 Mbps
• PoE ports: 1
• Fiber optic transmission: 1x SFP 1000 Mbps
• Protection against electrostatic discharge: 6 kV
• Operating temperature range: -40...65℃
• Permissible ambient humidity: 5...95%
• DIN rail mounting option
Details
The ULTIPOWER PoE switch is an industrial-type device for smooth network transmission. It allows connections at a speed of 10/100/1000 Mbps. It has 1 RJ45 port supporting auto-negotiation of connection speeds and the Power over Ethernet (PoE) function. The switch automatically detects a PD (Power Device) operating under the IEEE 802.3af/at standard and provides it with power. This makes it possible to extend network coverage where there is no access to sockets or power lines, and where there is a need to place access points, IP cameras, IP telephones, etc. The switch additionally features a 1000 Mbps SFP uplink port.
Switches of this type should be used in installations in industrial facilities, where unfavourable conditions for the operation of equipment may occur, such as increased dust, high or low temperature or high humidity. Installation of industrial switches is also recommended in the case of pole-mounted installations - in hermetic enclosures. The switches have Ethernet ports (Fast Ethernet or Gigabit Ethernet, depending on the model) for connecting devices such as IP cameras or computers. ULTIPOWER industrial switches have an enclosure that meets the IP40 standard (protection against access to hazardous parts, protection against foreign solids with a diameter of more than 1 mm). All ports have the ability to supply PoE power to the devices connected to them.
Key features:
- degree of protection: IP40
- power supply: 48-57 V DC
- possibility of connecting two power supplies (second one as redundant)
- power consumption: <5W (without PoE)
- Ethernet ports: 1x GigabitEthernet 10/100/1000 Mbps
- PoE ports: 1x GigabitEthernet 10/100/1000 Mbps
- PoE ports: 1 802.3af/at
- fibre optic transmission: 1x SFP 1000 Mb/s
- electrostatic discharge protection: 6 kV
- operating temperature range: -40...75°C
- permissible ambient humidity: 5...95%
- installation on DIN rail possible
Specifications
| Name | Industrial switch PoE ULTIPOWER 311SFP mini | ||
| Model | 311SFP | ||
| Applications | Switch PoE, Industrial switch | ||
| Manufacturer | ULTIPOWER | ||
| Interfaces | |||
| Ethernet ports | number of ports | 1 | |
| port types | Gigabit Ethernet | ||
| 10/100/1000 Mbps | 1 | ||
| PoE 10/100/1000 MBps | 1 | ||
| Optical port | Slot SFP | Yes | |
| SFP 1000 MBps slot | 1 | ||
| Console port | No | ||
| Performance | |||
| Bandwidth | Gbps | 4 | |
| Packet forwarding rate | Mbps | 2.97 | |
| Buffer memory | Mb | 1 | |
| MAC address table | 1K | ||
| PoE properties | |||
| PoE | Yes | ||
| PoE standard | 802.3af, 802.3at | ||
| Power output | W | 30 | |
| Max. power per port | W | 30 | |
| Priority for PoE port | No | ||
| PoE Auto Check | No | ||
| PoE schedule | No | ||
| Extend mode | No | ||
| Device properties | |||
| Power supply | DC | V | 48...57 |
| Number of fans | None | ||
| Dimensions | mm | 101 × 65 × 36 | |
| Mounting | Desktop, DIN (TH35) | ||
| Redundant supply | Yes | ||
| Certificates | CE/FCC | ||
| Package content | Manual, Switch, DIN mounting brackets | ||
| Operating environment | |||
| Temperature | operation | ℃ | 0...+40 |
| storage | ℃ | -40...+70 | |
| Humidity | air | % | 10...90 |
| storage | % | 5...90 | |
