IP Camera 2.0 Mpix: IQ752 (Day/Night, POE, 4-10 mm Lens) - CLEARANCE SALE!

Code: K1412
This product is no longer available
Estore: Library:



Outdoor IP Camera: ACTi TCM-1232 (1.3 Mpx, H.264, IR)
View of the camera

Outdoor IP Camera: ACTi TCM-1232 (1.3 Mpx, H.264, IR)
Rear view

Outdoor IP Camera: ACTi TCM-1232 (1.3 Mpx, H.264, IR)
The set includes PoE adapter...

Outdoor IP Camera: ACTi TCM-1232 (1.3 Mpx, H.264, IR)
...and CD with software
IQinvision is the world's leader in manufacturing megapixel cameras. This kind of cameras supplants standard devices due to capability of covering large area and providing detailed image. This feature is especially needed in the case of monitoring busy streets, stadiums, etc.
The camera can provide 20 fps at its maximum resolution, ensuring both detail and smooth images. The resolution may be reduced in order to adjust data stream to the capacity of the network.
The cameras from IQ75x series have been equipped with mechanically driven IR filter, which allows operation at night with IR illuminators.
Apart from remote recording of the images, the camera features local registration at CF memory card. It ensures continuous recording even in case of loss of connection with the camera.
The IQ752 cameras may be employed in many environments, due to wide range of working temperature and multiple options of powering: 12 - 32 VDC , 24 VAC, and PoE, i.e. through the UTP/FTP cable which is used for video data transmission.

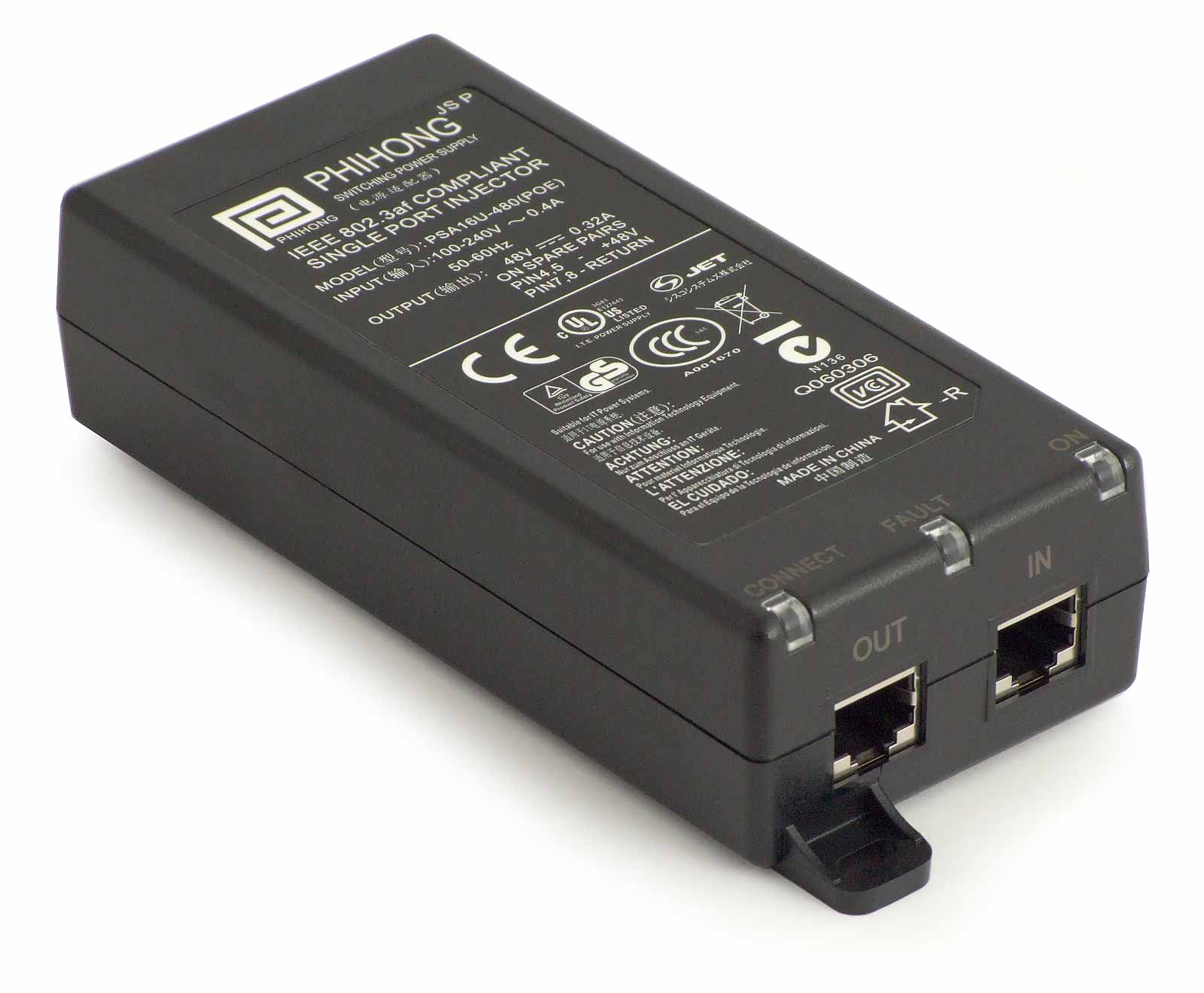

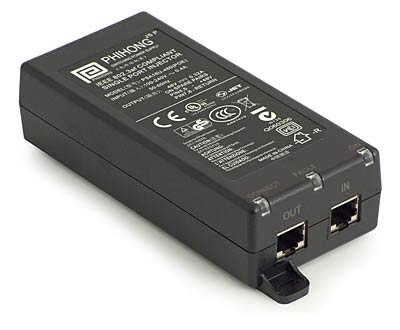

The set includes PoE adapter and CD with applications that help the installer to setup the camera, e.g. finding and configuring IQinvision devices in the network.






Maximum resolution

2.0 Mpix (1600 x 1200)

Maximum number of fps


Sensitivity (color)

0.2 lx

Sensitivity (b/w)

<0.05 lx

Dynamics range

61 dB

Shutter speed

1/12000 s

Image sensor

½'' CS Progressive Scan



Motion detection



12 – 32 VDC. 24 VAC. PoE

Power consumption

<2.5 W

Analog video output


CF interface


Alarm input/output



4/64 MB

Working temperature

-20 to 50 ºC

Typical file size (of a single frame)

140 KB
