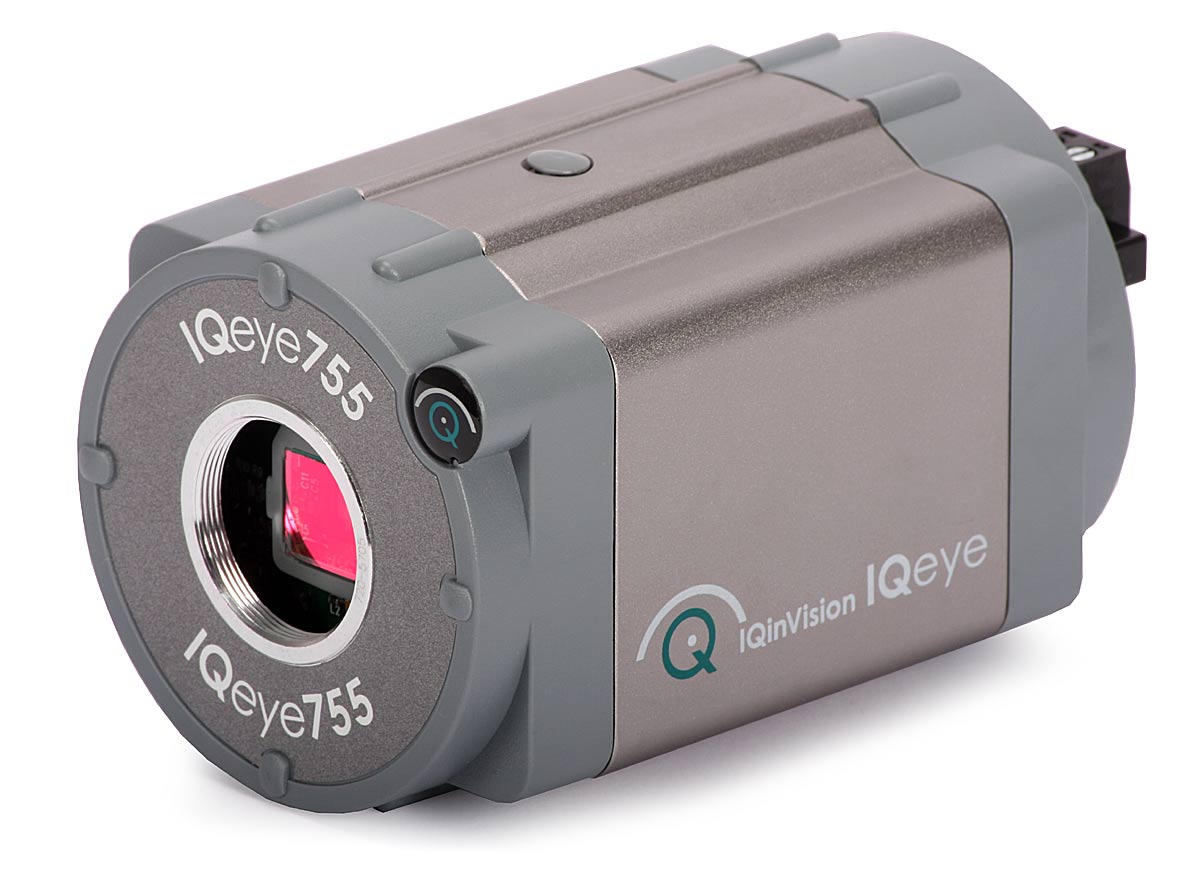

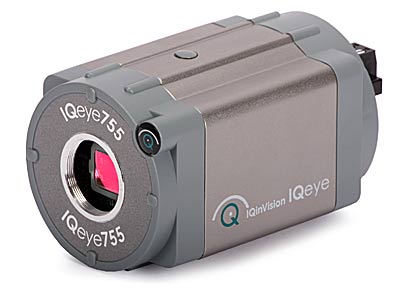

View of the camera

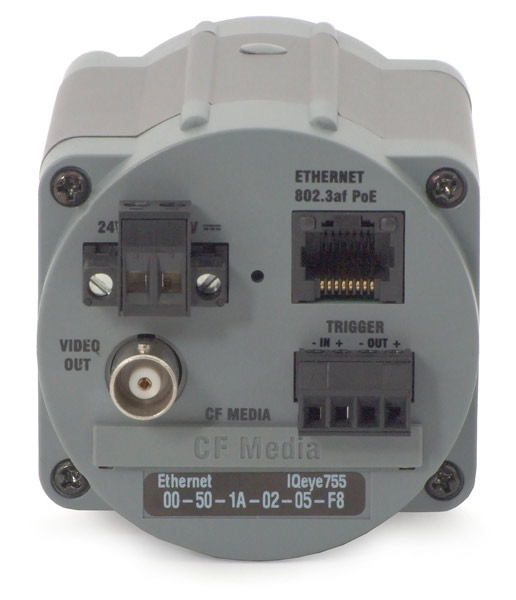

Rear view
IQinVision is the world's leader in manufacturing megapixel cameras. This kind of cameras supplants standard devices due to capability of covering large area and providing detailed image. This feature is especially needed in the case of monitoring busy streets, stadiums, etc.
Working at maximum resolution the camera can provide 10 fps, ensuring both very detail and smooth images. The parameters are adjustable which allows to use networks with lower capacity.
The cameras from IQ75x series have been equipped with mechanically switching IR filter, which allows operation at night with IR illuminators.
Apart from remote recording of the images, the camera can perform local registration at CF memory card. It ensures continuous recording even in case of loss of connection with the camera.
The IQ755 cameras may be employed in many environments, due to wide range of working temperature and multiple options of powering: 12 - 32 VDC , 24 VAC, and PoE, i.e. through the UTP/FTP cable which is used for video data transmission.
Name | IQ755 |
| Code | K1433 |
| Maximum resolution | 5.0 Mpix (2560 x 1920) |
| Maximum frame rate | 10 fps |
| Sensitivity (color) | 0.3 lx |
| Sensitivity (b/w) | <0.05 lx |
| Dynamic range | 67 dB |
| Shutter speed | 1/20000 s |
| Sensor | ½'' CS Progressive Scan |
| Compression | MJPEG |
| Motion detection | Yes |
| Power | 12 – 32 VDC, 24 VAC, PoE |
| Power consumption | <2.5 W |
| Analog video output | Yes |
| CF slot | Yes |
| Alarm input/output | Yes |
| Flash/RAM | 4/64 MB |
| Operating temperature | -20 – 50 ºC |
| Typical frame size | 400 KB |
