Warranty
3-year warranty.
Support
Details
The way we strip a cable not only depends on its type and size, but also on the kind of connector. Very important is the length of: the insulating layer which is removed from cable, conducting sheath, insulating spacer and internal conductor. These distances should perfectly fit the connector and be up to electrical and mechanical standards.

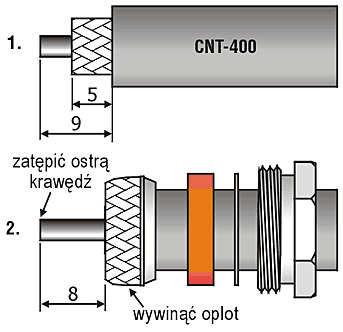

The way of preparing the cable NT-400 E84726 to fix the connector.
Specifications
| Name | 400APNM-C N-plug crimped on CNT-400 cable | ||
| Product type | Antenna connector | ||
| Manufacturer | Andrew | ||
| Specifications | |||
| Dedicated cable | CNT-400, Tri-LAN 400 | ||
| Impedance | Ohm | 50 | |
| connector type | straight | ||
| Connection type | Crimped | ||
| Mounting to housing | No | ||
