Details

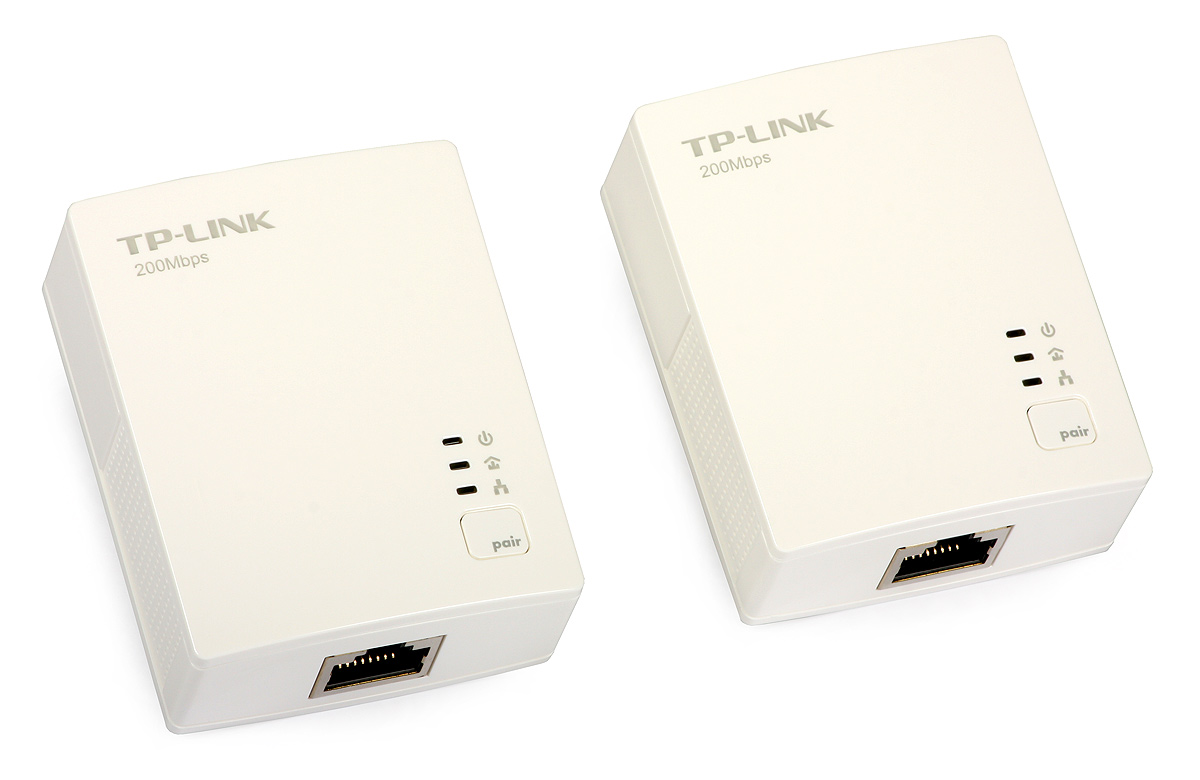

View of the main units of the TP-LINK TL-PA2010KIT

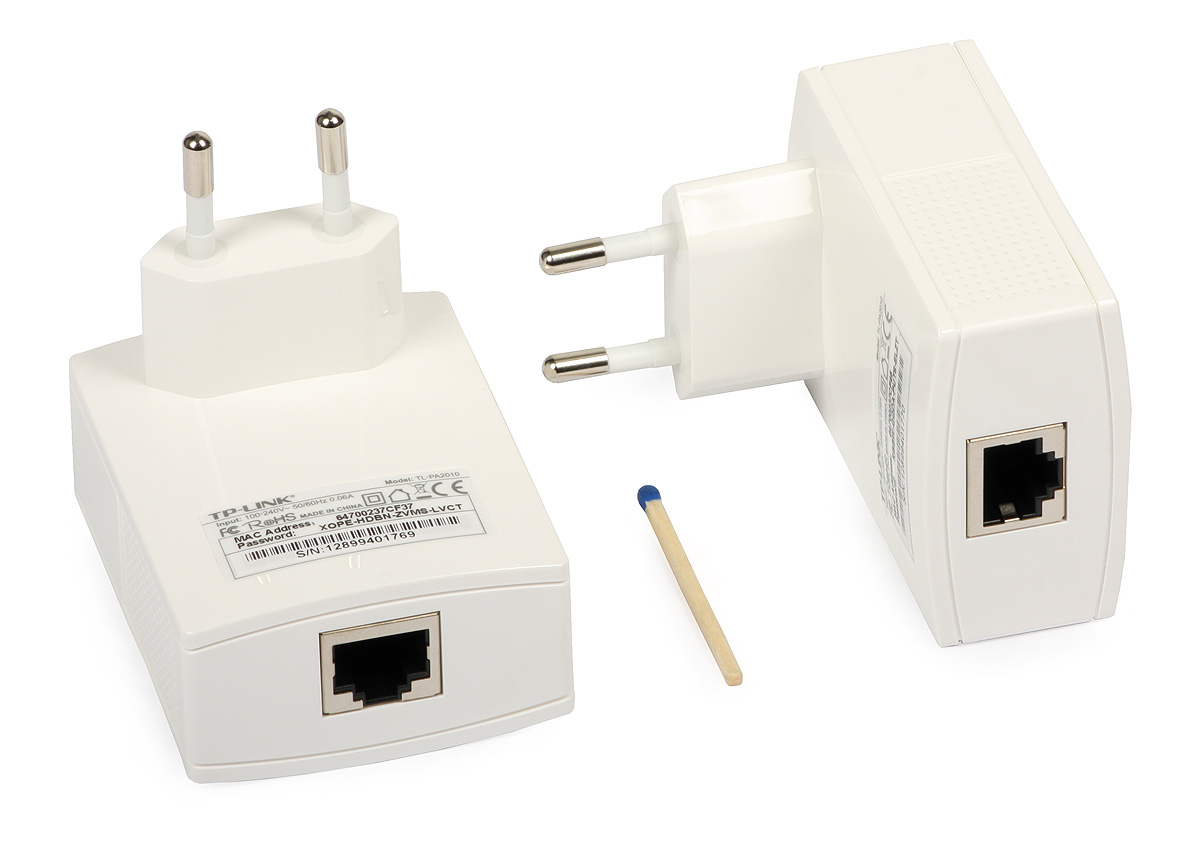

View of the other sides of the units

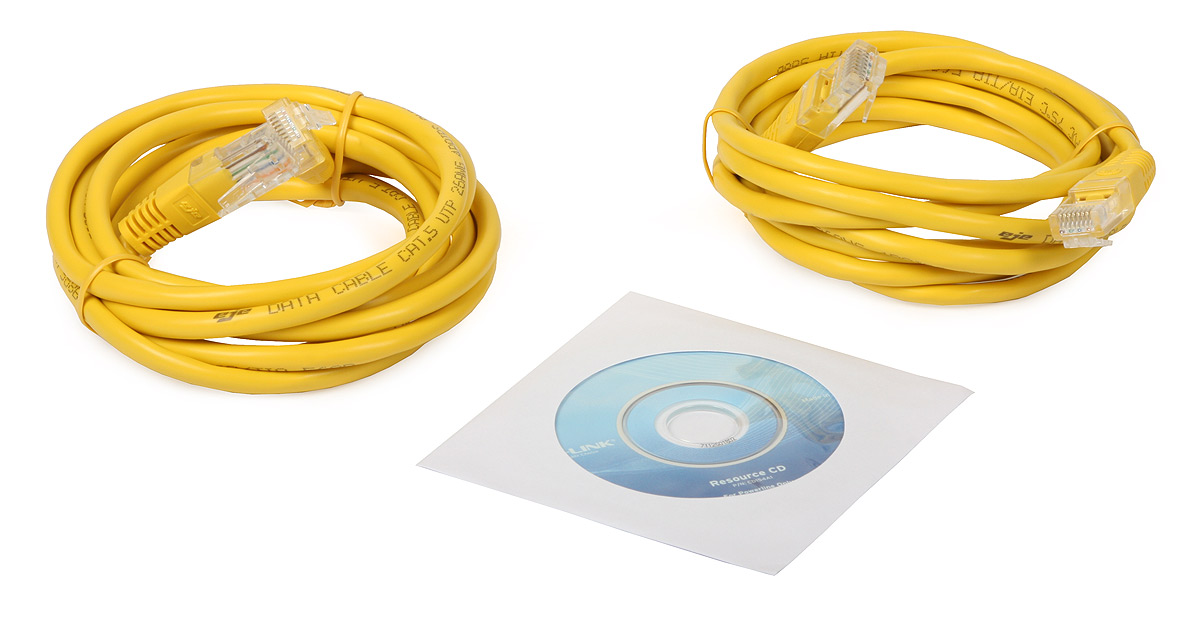

The included accessories
TP-LINK TL-PA2010KIT allows network connection through existing power line. The pair or a set of the powerline adapters is an ideal solution in every case where it is impossible to install Ethernet cables or the environment is not suitable for a wireless medium.
The pair of the powerline adapters is an ideal solution when it is impossible to install Ethernet cables
or the environment does not allow to use wireless connectivity.
It may be especially useful for connecting a television, home cinema etc.
in a place without LAN cable.
Distinguishing features:
- Two small-size units,
- No need for additional cabling - the use of the existing AC power network
- Compatibility with HomePlug AV,
- Data transfer rate up to 200 Mbps,
- Plug and Play installation,
- 128-bit AES encryption activated by pressing Pair button,
- Support for IGMP protocol (multicast group management), optimization for IPTV
The user needs as many units as the number of the 230 VAC power outlets that are to be simultaneously used as the nodes of the computer network. The maximum number of the units in the local network is 6.
QoS function allows IP traffic control
The installation of the TL-PA2010 adapters is very simple. The "first" one should be connected to the router (with the included network patch cable) and plugged into the nearest power outlet. The second/next adapter is to be connected via its patch cable to the computer in the second/next room and plugged into the nearby power outlet. The maximum length of the electrical wires between the outermost points of the network cannot exceed 300 m. All outlets should use the same branch (phase) of the power network.
Specifications:
| Software specifications | |
| Standards | HomePlug AV 200 Mbps, IEEE 802.3 10/100 Ethernet |
| Modulation | OFDM |
| Protocol | TCP/IP |
| Included drivers | Windows 98SE, 2000, XP, 2003, Vista, 7 |
| Additional functions | Plug and Play |
| 128-bit AES encryption | |
| Hardware specifications | |
| Interface | Ethernet port ( RJ-45) |
| Power plug | EU |
| LED indicators | Powerline connection, Power, Ethernet |
| Range [m] | up to 300 |
| Certificates | CE, FCC |
| Dimensions (one unit) [mm] | 65x52x28x5 |
| Weight (one unit) [kg] | 0.10 |
| Working environment | Temperature: 0...40°C Humidity: 10...90% |
| Power consumption (one unit) [W] | <3 |
Specifications
| Specyfikacja systemowa | |
| Standard | HomePlug AV 200 Mb/s IEEE 802.3 10/100 Ethernet |
| Modulacja | OFDM |
| Protokół | TCP/IP |
| Dołączone sterowniki | Windows 98SE , 2000, XP, 2003, Vista , 7 |
| Dodatkowe funkcje | Plug and Play |
| Szyfrowanie 128-bit AES | |
