SMA connector up to 6 GHz for Tri-Lan 240/H-155 /angled/

  2. Cellular Systems
  3. Connectors and transitions
  4. Connectors
Code: E84181
€4.20
Price Disc. Quantity Validity
€4.20 0 % from 1 piece
Available

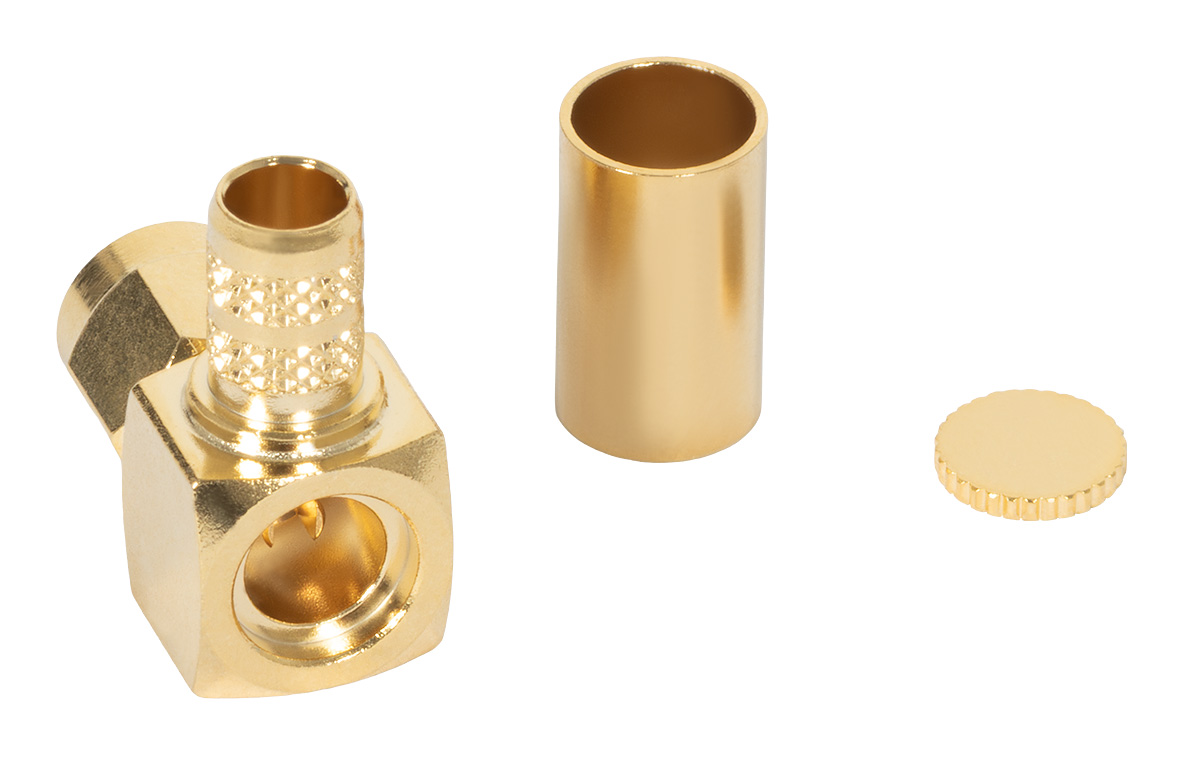

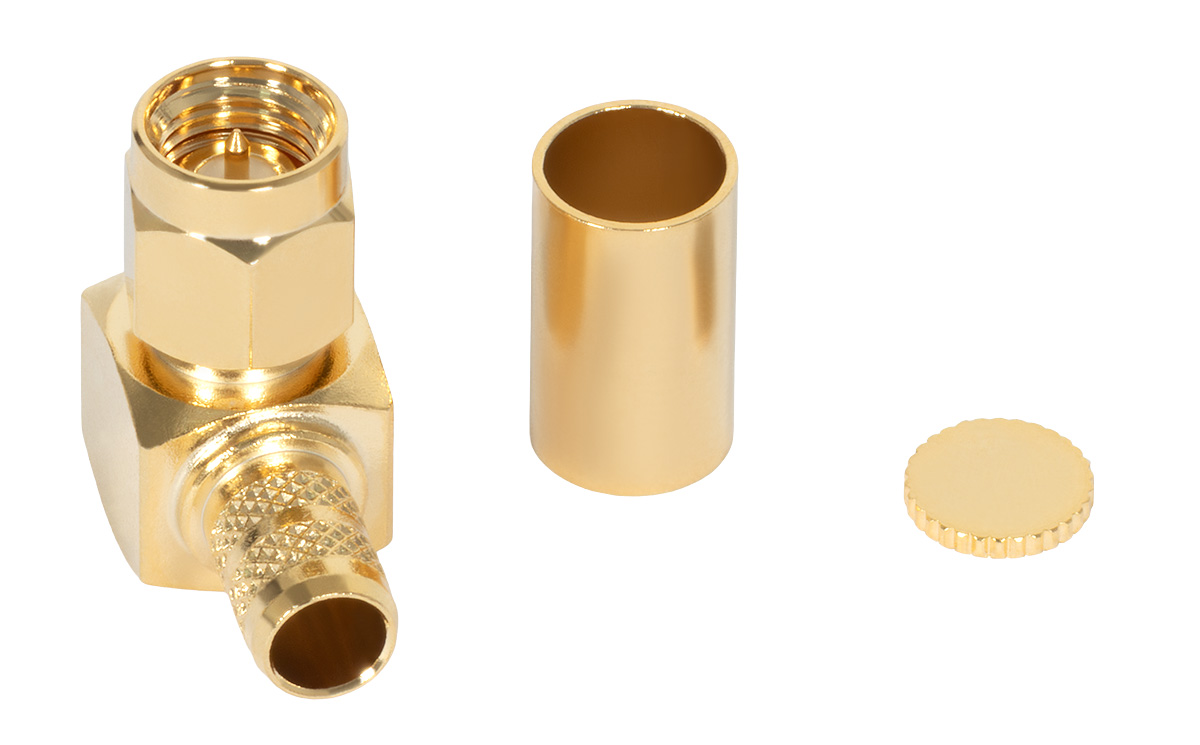

A high-quality angled SMA connector designed for the Tri-Lan 240 cable. The connector is intended for use in systems operating at frequencies up to 6 GHz.
• Designed for Tri-Lan 240 and Belden H-155 cable
• Operating frequency range up to 6 GHz
• VSVR <1.3
Estore: Library: , ,

Warranty

3-year warranty.

Support

  • Write to us!

Details

A high-quality angled SMA connector designed for Tri-Lan 240 and Belden H-155 cables. The connector is intended for use in systems operating at frequencies up to 6 GHz. It features low attenuation and good impedance matching. At such a high frequency as 6 GHz, specially designed, high-quality connectors should be used to ensure a better connection.
Comparison of DIPOL connectors with other brands
Cheap no-name connector
DIPOL connector
Expensive top-brand connector
Comparison of DIPOL's connectors with no-name and with top-brand ones

Specifications

Name Wtyk zac. SMA do 6GHz na Tri-Lan 240/H-155 /kątowy/
Product type Antenna connector
Manufacturer Dipol
Specifications
Dedicated cable H-155, Tri-LAN 240
Impedance Ohm 50
Operating band MHz 0...6000
connector type angled
Connection type Soldered, Crimped
Mounting to housing No
Operating voltage V 0...400
Maximum dielectric voltage V 0...1000
VSWR <1.3
Insulator resistance mOhm 5
Contact resistance Internal contact mOhm <6
External contact mOhm <2
