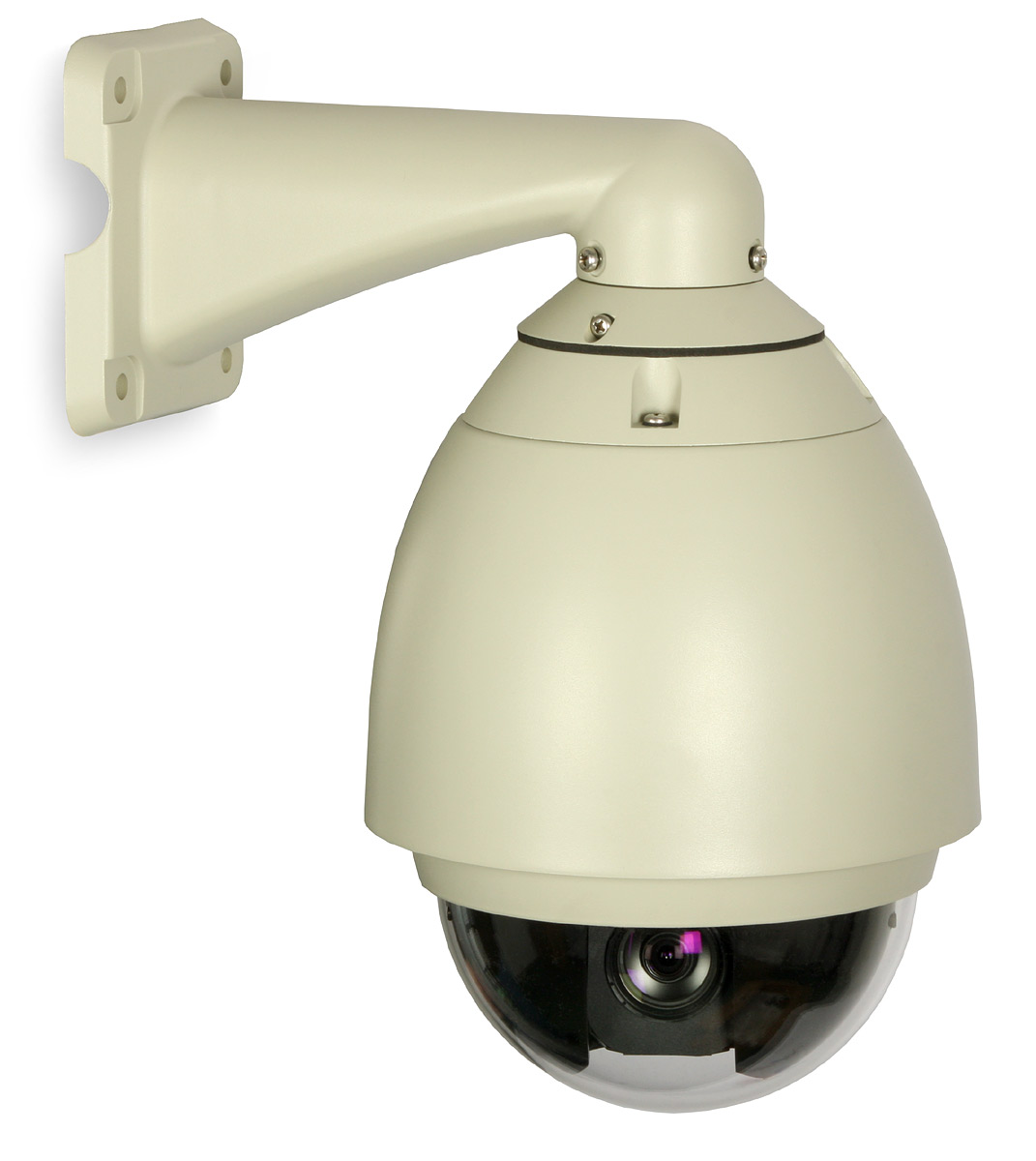

View of the camera

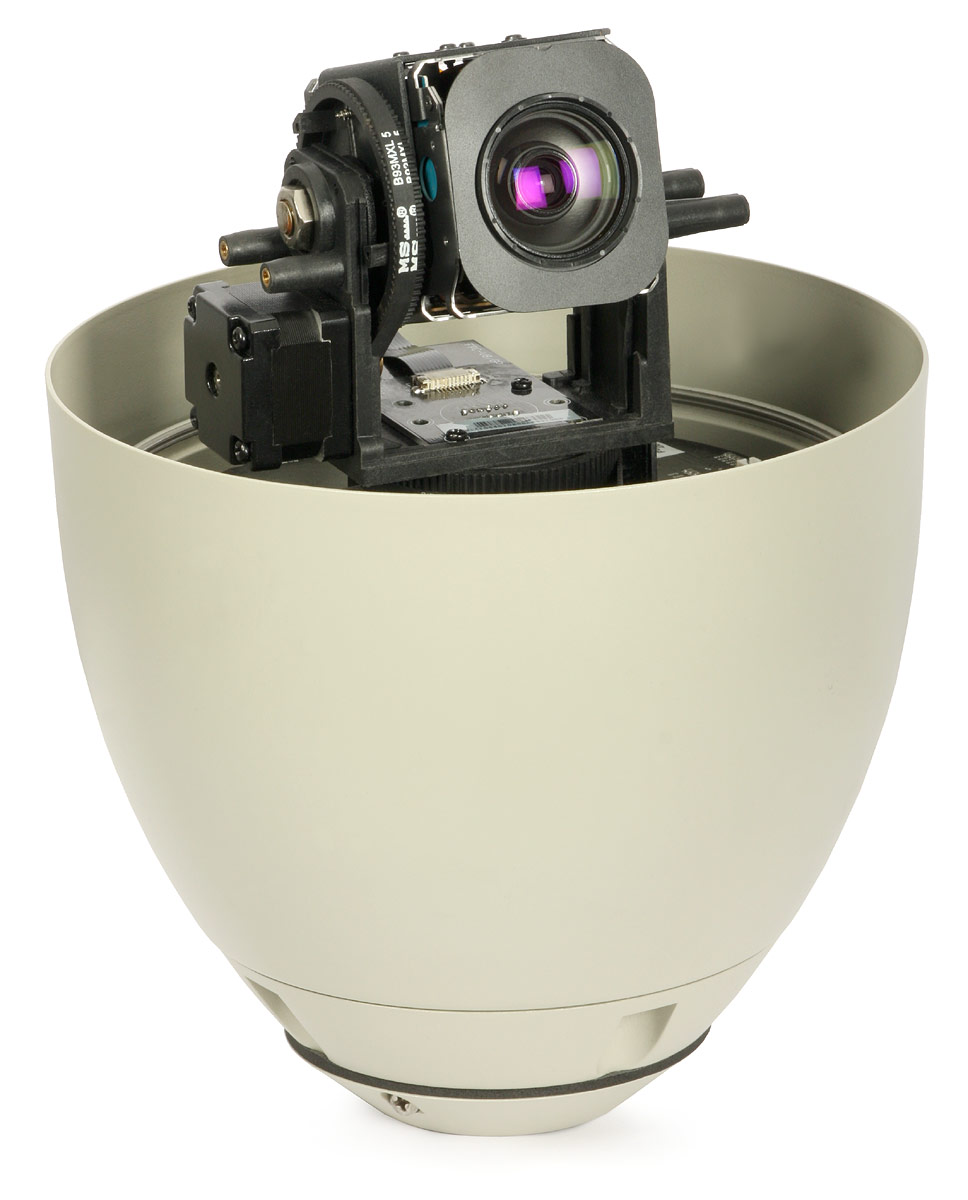

View without the dome

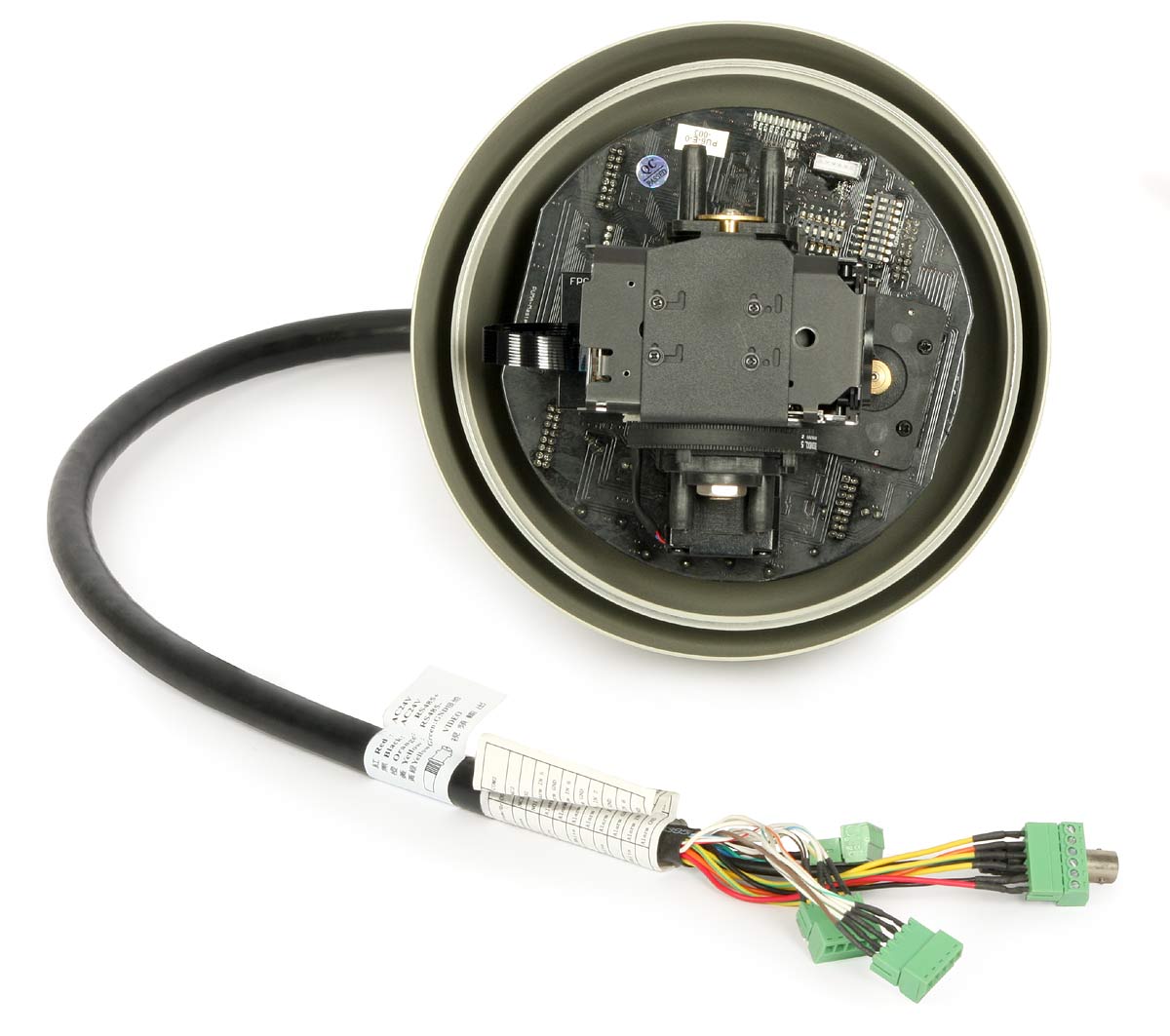

Top view without the dome

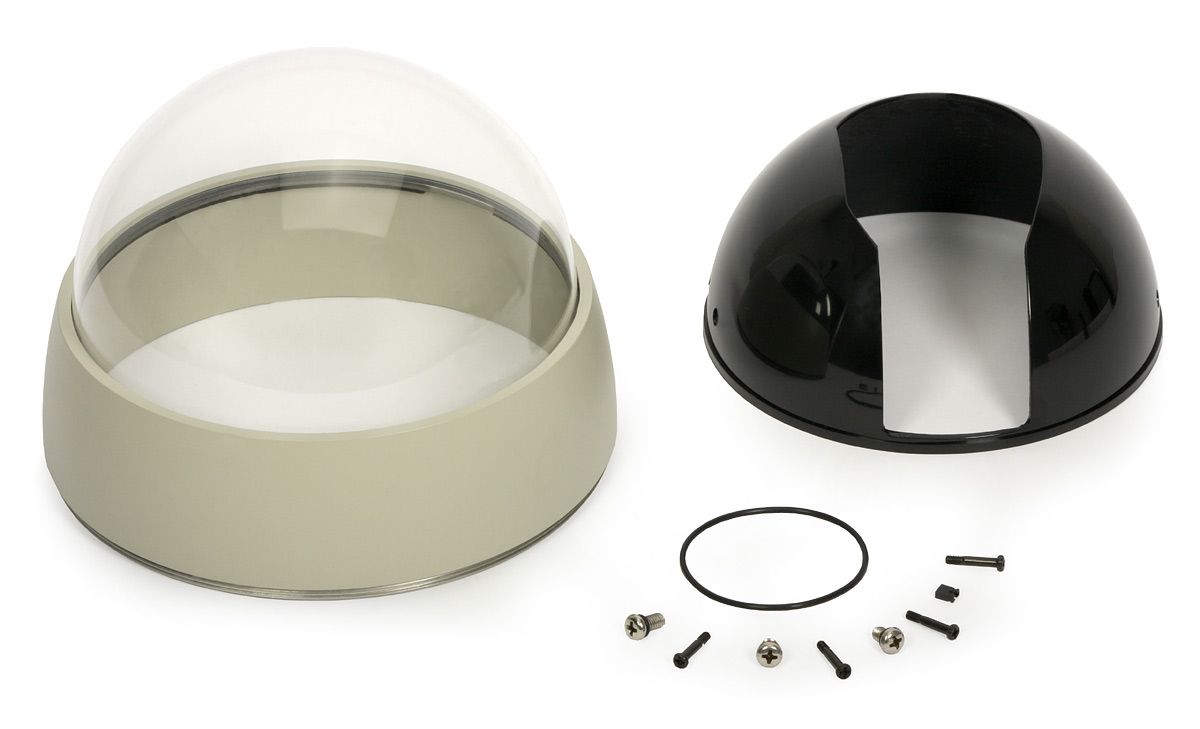

View of the dome and mounting accessories

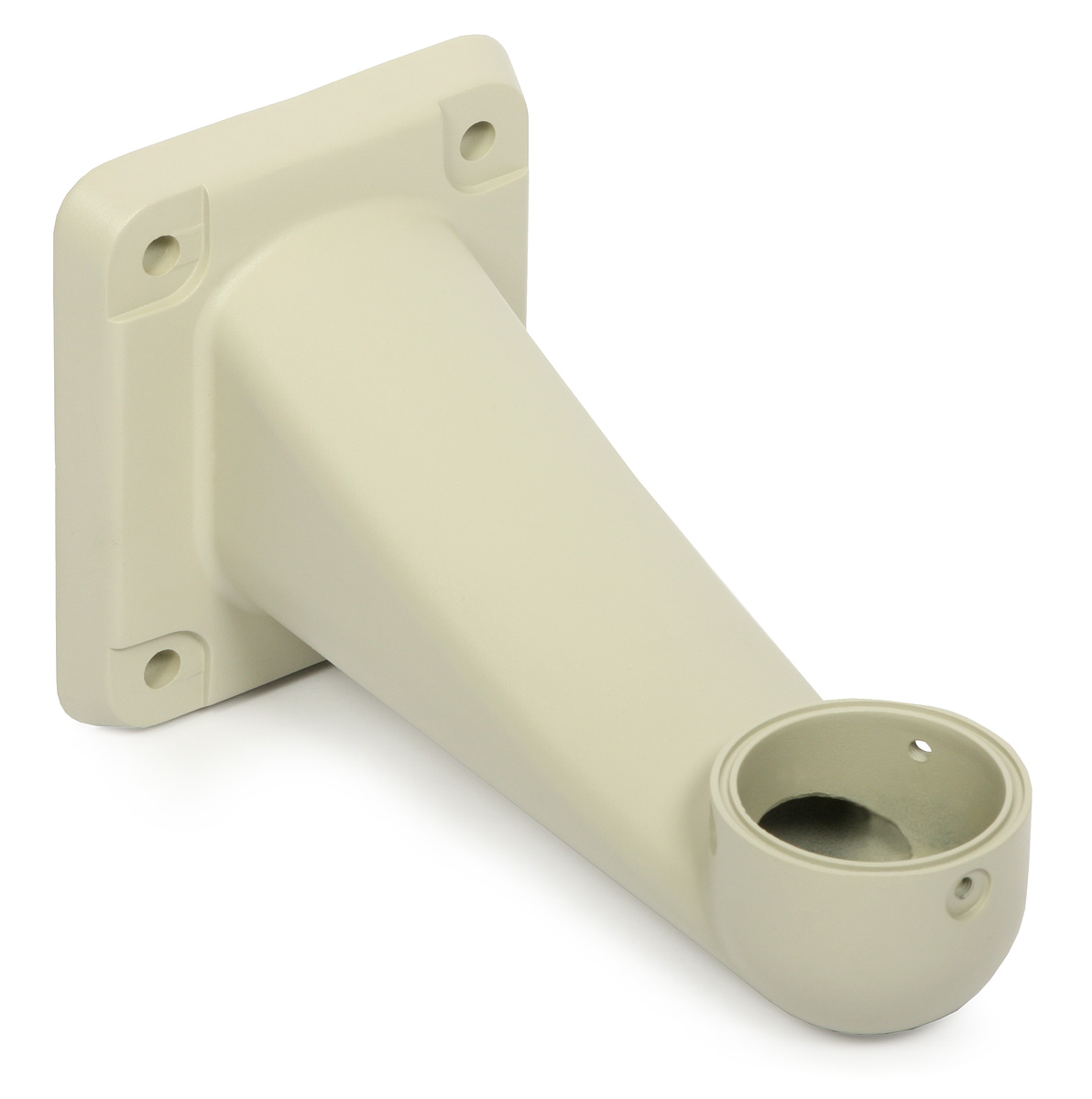

View of the included bracket

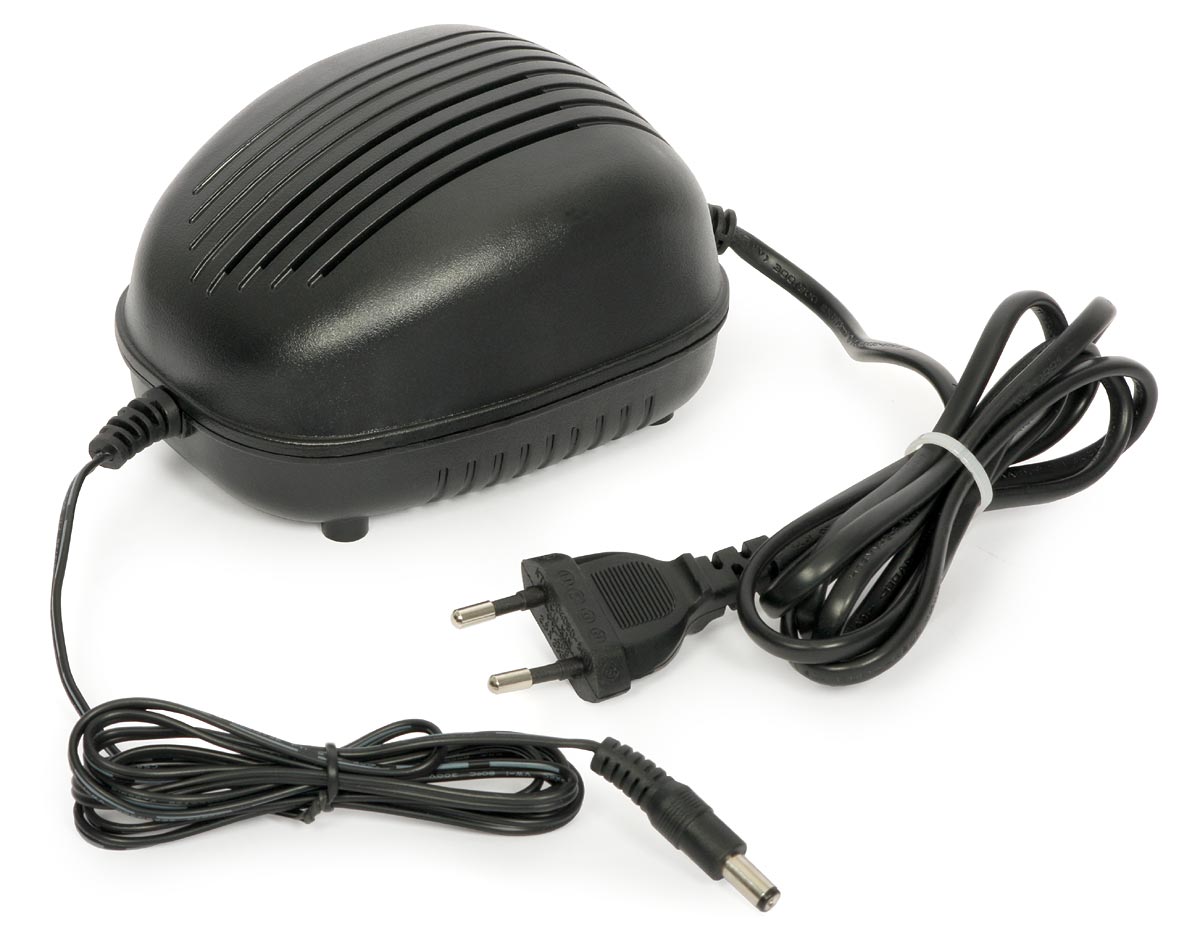

View of the included power supply
C4399/FCB-EX1010P is outdoor high speed dome camera with top parameters. This model employs great quality 1/4" EX-View CCD Sony image sensor, characterized by very high sensitivity. Perfect image quality is also ensured by advanced image processing, with many functions (including WDR) that improve picture parameters in various lighting conditions. The camera provides detailed images (530TVL) and powerful optical zoom (36x).
Distinguishing features:
- Great quality 1/4" EX-View HAD CCD Sony characterized by very high sensitivity
- High resolution of 530TVL
- 432x total zoom (36x optical, 12x digital)
- WDR (wide dynamic range)
- Advanced spherical privacy zone masking
- e-Flip function (electronically flips an image upside down if a tracked object moves beneath the camera dome),
- Mechanically switching IR filter
- Advanced slow AE response function
- Video motion detection
Specifications of camera module
| Module name | FCB-EX1010P |
| Code | M12291 |
| Image sensor | 1/4 SONY Ex-view CCD |
| Lens | f=3.4mm (57.8o) -122.4mm (1.7o) |
| ZOOM | Optical 36x |
| Minimum focusing distance | 320mm (f=3.4); 1500mm (f=122.4) |
| Focus adjustment | 6 modes |
| Horizontal resolution | 530 TVL (PAL) |
| Minimum illumination | 1/60s 1.4 lx (F=1.6; 50 IRE) |
| Electronic shutter | 1/1s to 1/10000s (22 steps) |
| S/N ratio | >50 dB |
| WDR | ON / OFF |
| BLC | ON / OFF |
| Gain | Auto, manual -3dB to 28dB |
| White balance | Auto, manual, outdoor, indoor |
| Picture effects | E-Flip, Mirror, B/W |
| Operating temperature | 0oC to 50oC |
| Power consumption | 4.9W (12VDC) |
| Dimensions (W x H x D) | 50mm x 57.5mm x 87.9mm |
| Weight | 0.23 kg |
Speed dome features/specifications
- Pan range: 360o (continuously)
- Tilt range: 90o (with reserve to reduce blind spot)
- Pan speed: 0.1 to 300o/s
- Tilt speed: 0.1 to 120o/s
- Maximum number of presets: 128
- Preset recall speed up to 400 (precision: +/-0.1o)
- Compatibility with Sony, Hitachi, CNB, Sanyo, Yoko, LG and Samsung cameras
- Power: AC24V/1A (indoor camera) or AC24V/2A (outdoor camera)
- User-friendly installation
- Communication: RS-485
- Baud Rate: 2400bps-19200bps
- Multi-language menu
- Camera name and XYZ marker
- Viewfinder function
- Possibility of programming 3 routes (each up to 2 minutes)
- 6 groups of editable vector scanning (adjustable speed, position, period of time, pitch)
- 8 editable privacy zones
- 8 editable fields for displaying additional OSD information (allowing to name and display camera position and attributes)
- Still image (freeze function)
- Last position memory (resuming the settings before a change)
- Intelligent horizontal scanning
- Power-off memory (resuming the settings and operation after replacing power supply)
- 3-dimensional control (possibility of manual change of zoom and scanning line during automatic or manual operation)
- Automatic correction of speed and focus enabling precise localization of the target
- Access management (administrator/general user)
- Authorization procedures (administrator can assign access rights)
- Date & time settings / information
- Schedule function
- Alarm functions (auto switch on/off, alarm periods, control of alarm inputs/outputs)
- Current camera temperature (on/off)
- Notification of exceeding adjustable temperature limit
- Optional auto-off function in case of overheating
New kind of privacy zones
The camera allows to define up to eight privacy zones (parts of the image are not visible for the operator). C4399/FCB-EX1010P camera uses new spherical masks - the size of the mask is combined with zoom. It is the only sensible solution in the case of PTZ cameras.
The camera allows to define up to eight privacy zones (parts of the image are not visible for the operator). C4399/FCB-EX1010P camera uses new spherical masks - the size of the mask is combined with zoom. It is the only sensible solution in the case of PTZ cameras.
Video motion detection and alarm inputs/outputs

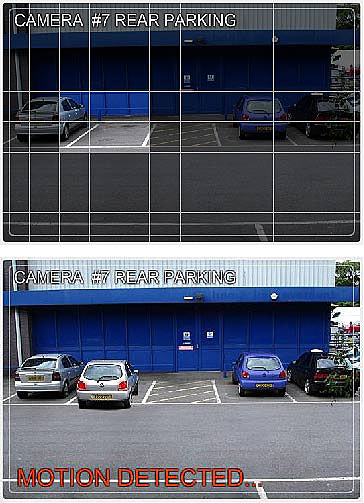

The built-in motion detection function allows to define up to 4 detection zones. The image is divided into 96 pieces (12 x 8 fields). Image processing algorithms can detect motion in any field and trigger alarm. The alarm can change the state of alarm otput/s in the camera, driving external devices.
Motion detection is often used in CCTV systems installed at parking lots where a car in certain area may control the gate/barrier, trigger sound/optical signal etc. Alarm inputs/outputs enable implementation of various automated functions enhancing "system intelligence".
The built-in motion detection function allows to define up to 4 detection zones. The image is divided into 96 pieces (12 x 8 fields). Image processing algorithms can detect motion in any field and trigger alarm. The alarm can change the state of alarm otput/s in the camera, driving external devices.
Motion detection is often used in CCTV systems installed at parking lots where a car in certain area may control the gate/barrier, trigger sound/optical signal etc. Alarm inputs/outputs enable implementation of various automated functions enhancing "system intelligence".
Video motion detection
Slow exposure

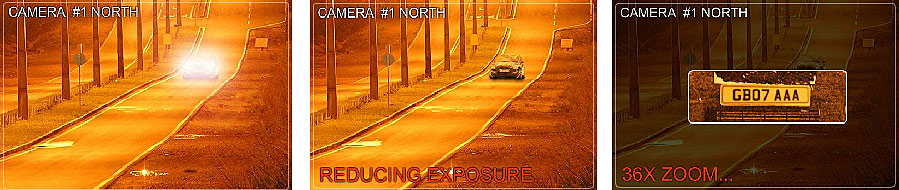

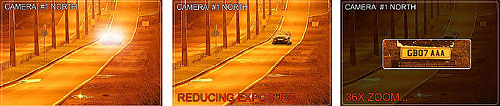

Longer reaction time combined with Wide Dynamic Range (WDR) function enables better identification. Powerful zoom allows to notice such details like license number and face of the driver.
Slow exposure function is used in places with dynamic lighting changes, e.g. in underground parking lot where the headlights of a car directly illuminate the camera.
Longer reaction time combined with Wide Dynamic Range (WDR) function enables better identification. Powerful zoom allows to notice such details like license number and face of the driver.
Slow exposure function is used in places with dynamic lighting changes, e.g. in underground parking lot where the headlights of a car directly illuminate the camera.
Slow exposure function
After taking the dome off the camera, there are available micro-switches used for changing communication protocol, baud rate, camera number. The user can find the detailed description of the switches in the manual.

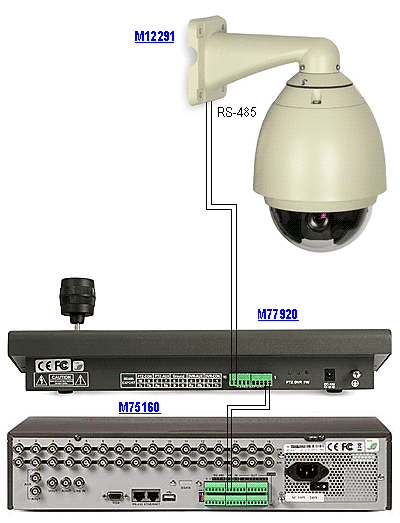

Connection to DS-1003 M77920 system control unit

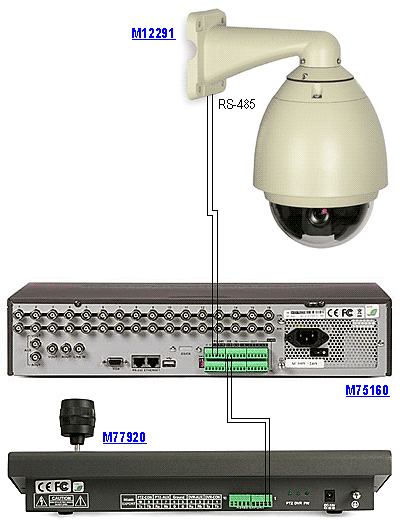

Connection to ULTIMAX DVR
Connecting the camera directly to the DVR (the second diagram), the operator can control PTZ functions with the keypad of the DVR, system control unit M77920, or remotely via client program. Network client program also allows to configure the camera. Remote configuration is a very useful feature - the camera has advanced OSD menu, which may cause the process a little troublesome in the case of performing the task on the spot. User-friendly menu of the client program and detailed user manual help to do it without any problems.
The system control unit can also control the DVR. Thanks to the fact that the unit and DVR come from the same manufacturer, there are no problems with compatibility. Additionally, the layout of the keyboard is identical on both devices, which helps to remember functions of the keys.
The system control unit can also control the DVR. Thanks to the fact that the unit and DVR come from the same manufacturer, there are no problems with compatibility. Additionally, the layout of the keyboard is identical on both devices, which helps to remember functions of the keys.
OSD menu
Without using remote access, the camera, system control unit and DVR can be connected as shown in the first diagram.
The housing of the camera provides IP66 class protection. The set includes wall bracket, about 20 cm long. The camera is powered from the included external AC/AC adapter (230VAC/24VAC, 2A).
