Video Transformer-Receiver TRO-1/400 - CLEARANCE SALE!

Code: M1669
This product is no longer available
Estore: Library:

Support

Details

Ceiling Dome Camera CAM 082 (420TVL, Sharp, 0.5 lx, 3.6mm)

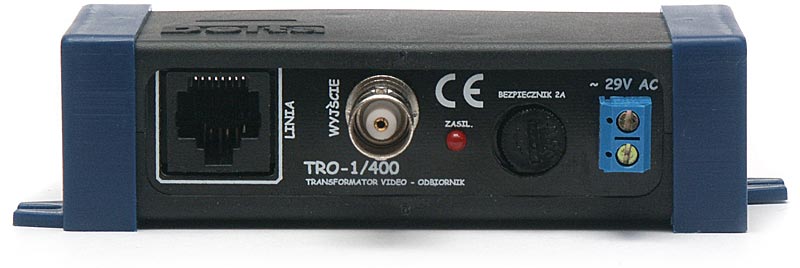

View of the device
Ceiling Dome Camera CAM 082 (420TVL, Sharp, 0.5 lx, 3.6mm)

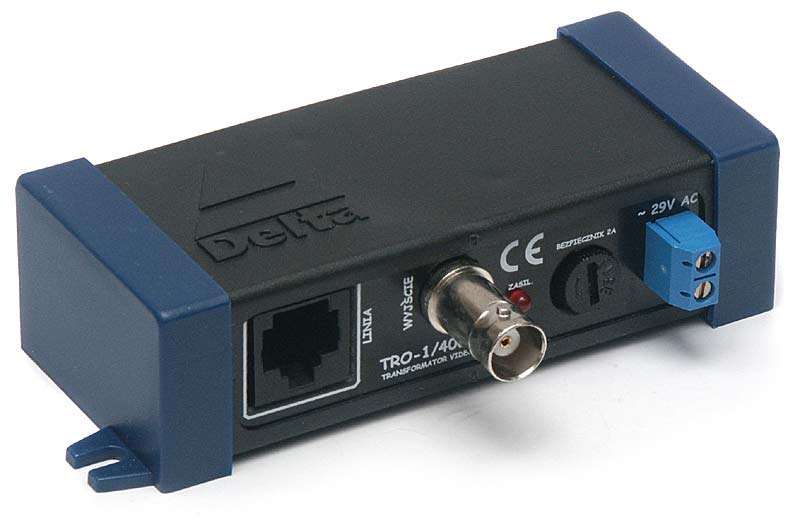

View of the device



LOAD MAXIMUM DISTANCE
AT -24V AC
MAXIMUM DISTANCE
AT  -29V
1 camera 250mA 1080 meters 1600 meters
1 camera 250mA
+ thermostat 500mA
260 meters 500 meters
For distances greater than 400 meters a signal amplifier should be used.
Specifications
Name

TRO-1/400 Twisted pair receiver

Code

M1669

Video Bandwidth to 50 MHz
Video Insertion Loss 0.5 dB ( for f=5 MHz )
Video Output Impedance 75 ohm
Twisted Pair Impedance 100 ohm

Coaxial Cable Output Type

BNC socket

Twisted Pair Cable Socket Type

RJ-45 (8 pin, 4 pairs)
Maximum Power Supply Input AC 29V / 1A

Maximum Output Voltage

40V DC

Maximum Output Current (40V)

1A

Fuse 5x20

2A/250V
Weight 100 g
Dimensions 117x64x30 mm
Schematic diagram for a camera without thermostat

Schematic diagram for a camera with thermostat

RJ-45 CONNECTOR compliant with T568B standard.

Specifications

OBCIĄŻENIE MAKSYMALNA ODLEGŁOŚĆ
PRZY ZASILANIU ~24V
MAKSYMALNA ODLEGŁOŚĆ
PRZY ZASILANIU ~29V
1 kamera 250mA 1080 metrów 1600 metrów
1 kamera 250mA
+ termostat 500mA
260 metrów 500 metrów
