VSB Modulator MT-310 (for MMH-3000)

Code: R81708
This product is no longer available
Estore: Library:

Support

Any questions or comments?

  • Write to us!

Details

Base Unit UC-380 (for Modular Headend MMH-3000)

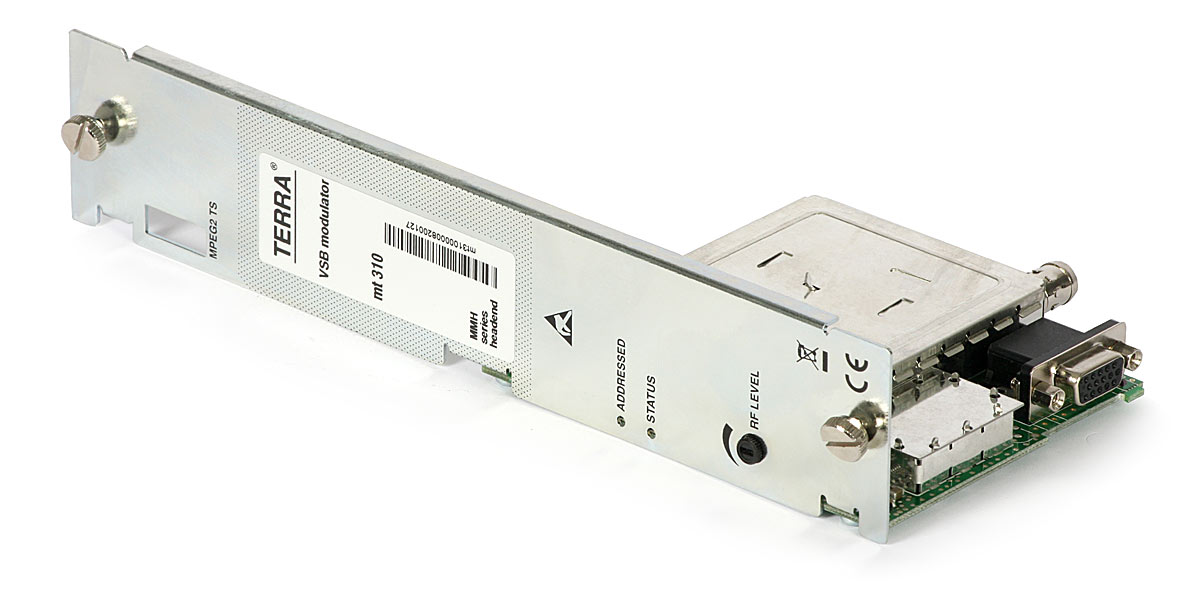

View of the modulator
QPSK CI Receiver RDC-313 (QPSK/PAL, for MMH-3000 headend)

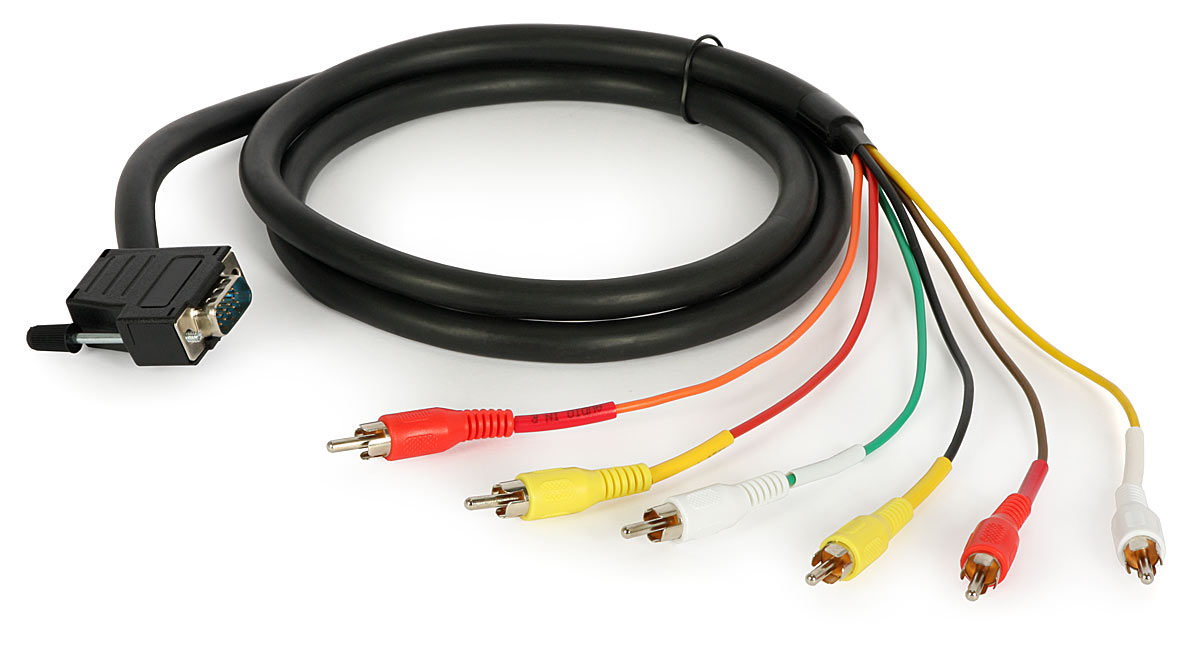

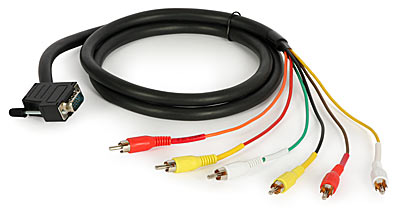

View of the adapter for connecting an A/V source with RCA outputs
VSB Modulator MT-310 has been designed for MMH-3000 headend. Thanks to vestigial side band the device allows to utilize adjacent channels. This kind of operation requires balanced output levels of output channels. The differences among individual channels cannot exceed 3 dB.
High maximum output level (100dB) allows to feed many subscriber outlets.
The input video signal may come from a CCTV camera, DVD player, computer or other device generating audio-video content e.g. in hotel TV system.
More on MMH-3000 headend you can read in the article :
.
Specifications
Name

VSB Modulator MT-310

for MMH-3000
Code R81708
TV standard * B/G/D/K/
Output frequency range [MHz] 110-862
Video input (CVBS)
Frequency range [Hz] 20-6M
Level / impedance [V/Ω] 1/75
Audio input (LF)
Frequency range [Hz] 20-15000
Level / impedance [mV/kΩ] 775/10
Others
Output: level / impedance [dBuV/Ω] 100/75
Return loss [dB] >=14
Output level adjustment [dB] 0...10
S/N ratio [dB] >57
Video carrier/ audio carrier ratio * [dB] 12/16
Audio level adjustment (2dB step) * [dB] +6...-6
Power requirements: voltage / current [V/A] 5.5/0.82
Operating temperature [oC] 0...50
Dimensions [mm] 45x115x220.5
Weight [kg] 0.38
* Parameters set in free Terra Link, application program or its commercial, full version CMH Master R81706
